Auxetic Lattice—Two New Cell Types
Creo+
User Interface Location: Click >
Lattice > , and select
auxetic with two angles, or
auxetic with one angle.
Lattice > , and select auxetic with two angles, or auxetic with one angle.Videos
If the video does not play, watch it on YouTube.
Description
Two new auxetic cell shapes have been added to the Lattice feature in Creo.

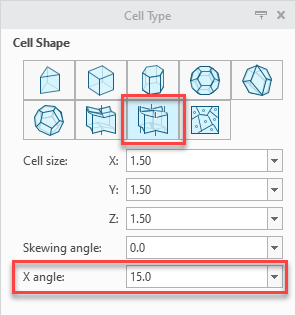

• Auxetic uniform lattice can be controlled by the X angle parameter.
 |  |

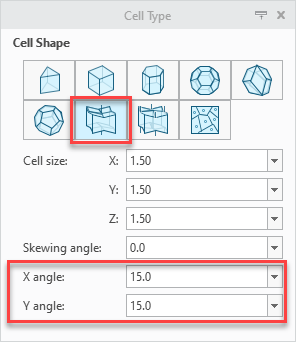

• Auxetic non-uniform lattice can be controlled by the X angle and Y angle parameters.
 |  |
The auxetic cells enable you to create a beam-based lattice to produce structures with negative Poisson’s ratio.
 |
 |
Benefits

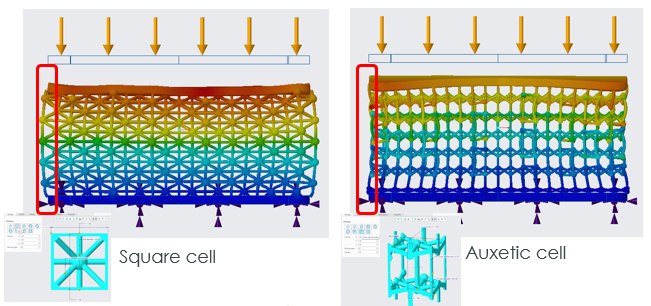

• Create high energy absorption and fracture resistance meta-materials with properties that do not exist in nature. These can be useful in applications like body armor and medical devices.
• Create a beam-based lattice to produce structures with a negative Poisson’s ratio.
• These capabilities are integrated inside Creo, without need to leave the Creo environment, and are fully associative.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
