Support for Parameter Callouts in Additional Text of Geometric Tolerances
Creo+
User Interface Location: Additional text panel of geometric tolerances.
1. Select the geometric tolerance. The Geometric Tolerance ribbon tab opens.
2. Click the Additional Text button. The Additional Text panel opens.
Videos
If the video does not play, watch it on YouTube.
Description

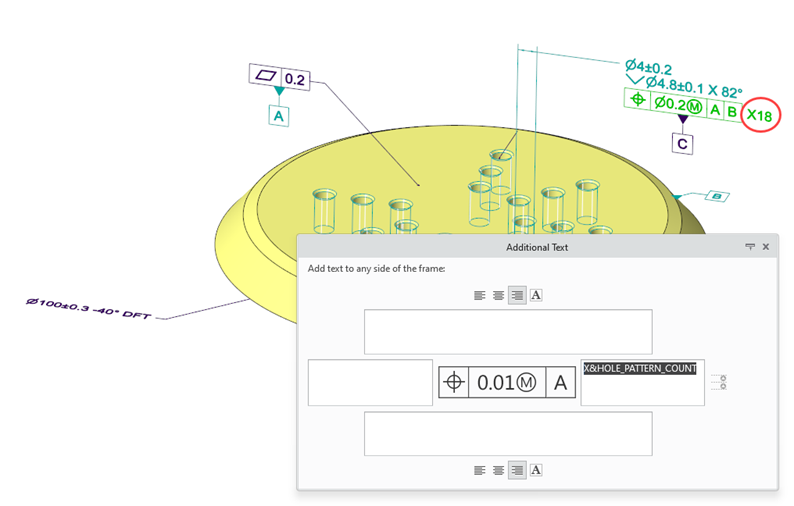

You can now create callouts based on parameters in the additional text fields of geometrical tolerances. This eliminates the need for manual corrections and updates when modifications are made to the model.
With this enhancement, the hatch designer is now available in Drawing mode, and you can directly create or edit a PAT hatch pattern.
Benefits
Improved parametric behavior for geometrical tolerances.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
