Creo Ansys Simulation—Cross Section Support
Creo+
User Interface Location: From > click
to activate a selected section from the Model Tree.
to activate a selected section from the Model Tree.
Videos
If the video does not play, watch it on YouTube.
Description
There is full support for cross sections while working in Creo Ansys Simulation.
The following controls are available for cross sections:
• Create
• Redefine
• Activate
• Disable

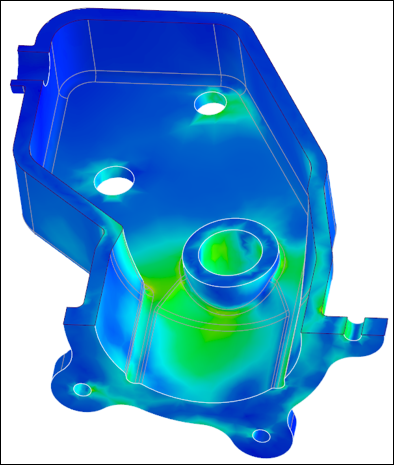

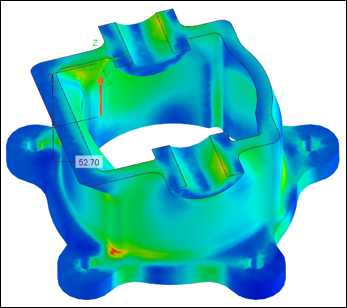

This enhancement also allows dynamic update of cross sections. There is also an option in both Creo Simulation Live and Creo Ansys Simulationto hide wireframe geometry from the results using the results legend. The following figures show the display of results for different sections.
Benefits
This enhancement provides the following benefits:
• Clearer results when there is a need to cut the model
• Familiar user interface for cross section from Creo
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
