Lattice: Localized Seed Points in Stochastic Voronoi Diagram
Creo+
User Interface Location: Click Model > Engineering > Lattice > Cell Type > > Voronoi diagram > User-defined seeds.
User-defined seeds collector on the Cell Type tab.
Videos
If the video does not play, watch it on YouTube.
See the video on the Learning Connector.
Description
A new option provides the capability to increase the density in localized areas of stochastic Voronoi lattice. Datum points can be used as seeds for the centers of additional Voronoi cells. This allows you to increment the density in localized areas of the stochastic Voronoi lattice structure until you achieve the desired density.

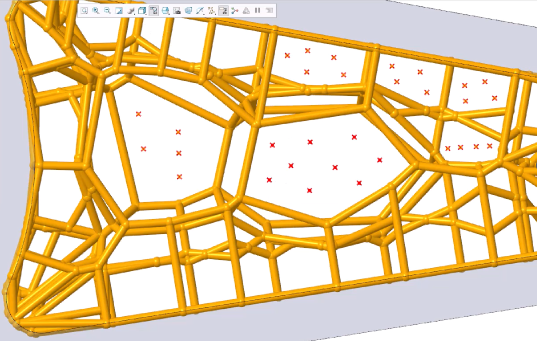

Area of low density:

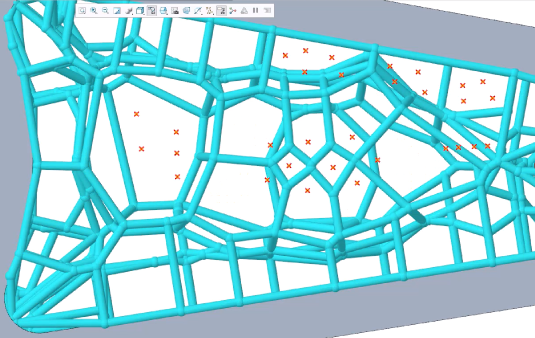

Density increased:
Benefits
• More flexibility to create complex lattices
• Straightforward workflow for increasing the density in selected areas
• Available inside the same familiar Lattice user interface
Additional Information
Tips:
None.
Limitations:
No known limitations.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
