Digital Product Traceability: Enhancements
User Interface Location: Not Applicable
Product: Windchill
Release: 12.0.2.0
Summary
The enhancements that are introduced in this release enable you to perform the following tasks:
• Manage trace links for Class Diagram and Use Case Diagram
• View large preview of traced objects in the Traced To table
• Clear suspect alert indicator from a trace link in a single step
• Effectively reuse trace links using copy and paste actions
• Manage trace links for documents
• Create and view trace links with improved performance
Additional Details
• Introduced
Class Diagram and
Use Case Diagram as new soft types to architecture external resource. You can create, view, update and delete trace links between these soft types and traceable objects. You can also add them to change objects.

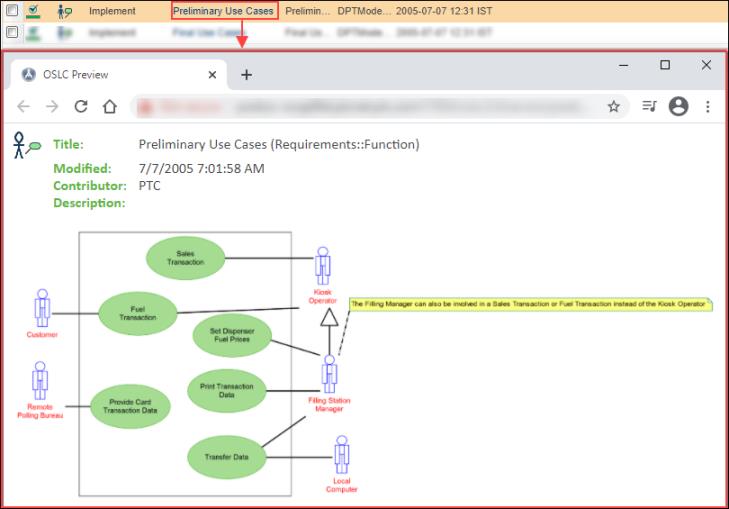

• Support of large preview has been introduced in this release. When large preview information is available for an OSLC server, an attribute value is displayed as a hyperlink. Click the hyperlink to open large preview.
• When a trace link is alerted as suspect, clear the
suspect alert flag in a single step using
clear suspect action.
• You can reuse trace links in the
Traced To table and
Affected Objects table for change objects using
copy and
paste actions.
• For Windchill Modeler server, by default, only the root is available in the Selection Dialog Context table.
• The Traces tab is available in the document Structure browser. This tab is hidden by default. The visibility of this tab is controlled by the Show Traces Tab in Document Structure preference.
Related Information
For more information, see
