Enhancements in the Redline: The Classification Tab
Windchill 13.1.1.0
Description

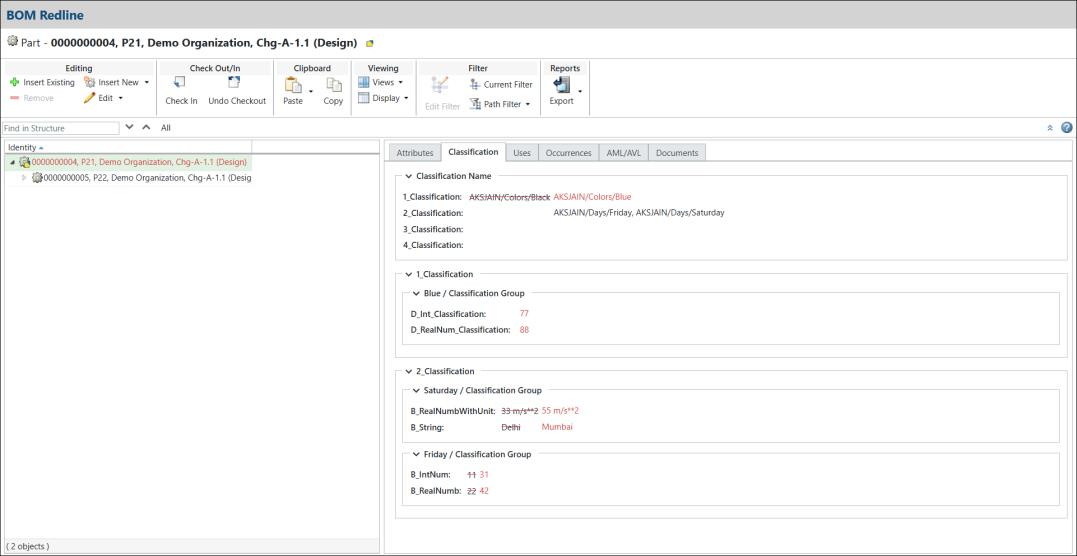

A new Classification tab has been introduced in the BOM Redline Structure Browser. This enhancement supports change planning for the engineering BOM with classification data for part versions. The redline uses the same user interaction for classification as the Product Structure Browser. This visual approach is applied when editing the engineering BOM in the redline and generating the change notice summary report.
The values of Classification Node and Classification Attribute are attributes. Visual highlights for attribute modifications show the old value as strikethrough and the new value in red.
Related Information
For details, see the topic Classification Tab.
