Use Case: Select in Downstream Structure Action
Consider that an upstream part has multiple discrepancies. You can use the
Select in downstream structure action to view a downstream part for a specific discrepancy.
Select in downstream structure action to view a downstream part for a specific discrepancy.1. Select a part in upstream tree structure. Consider that part has multiple discrepancies present.
2. Click

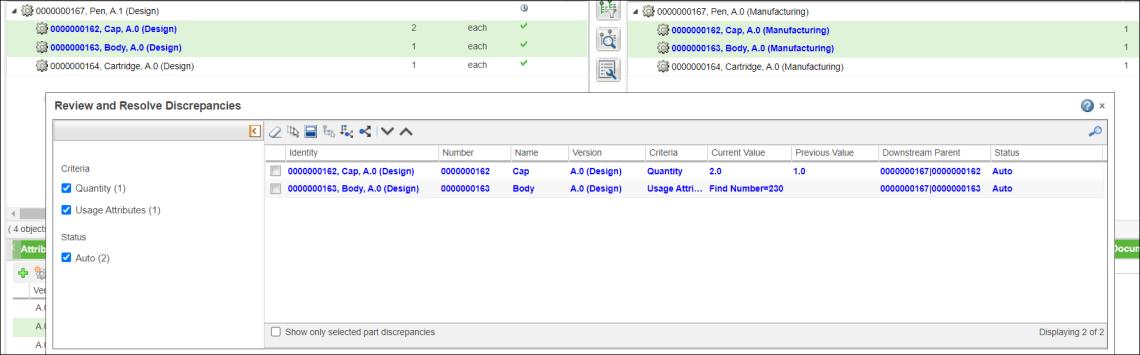

Detect Discrepancies. The parts with discrepancies are highlighted in the upstream tree structure and downstream tree structure. The Review and Resolve Discrepancies dialog box opens.
Detect Discrepancies. The parts with discrepancies are highlighted in the upstream tree structure and downstream tree structure. The Review and Resolve Discrepancies dialog box opens.
3. Select a discrepancy in the Review and Resolve Discrepancies dialog box.

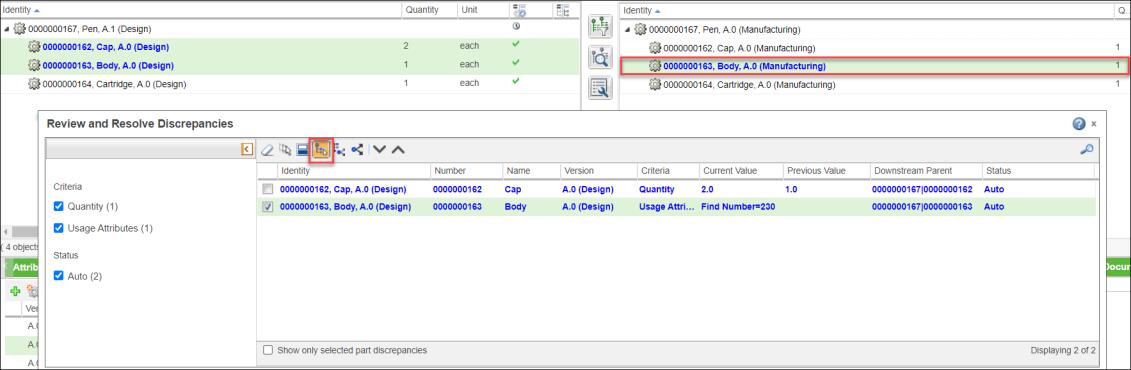

4. Click Select in downstream structure. The related discrepant part is highlighted in the downstream structure.
Select in downstream structure. The related discrepant part is highlighted in the downstream structure.
