Adding New Authoring Application Parameters (CATIA V5)
Default system parameters are pushed from Windchill when a CAD part or drawing is saved or checked in, and they appear on the page discussed below. You can keep these parameters, change them, or create new ones. Use the following process to access the page to add a new parameter.
To add new parameters, select the Product tab on the Properties window (right-click object name in the Specification Tree > Properties).
*
Hyperlinks are not supported and not valid for mapping.
The following is a list of standard parameter names that can be mapped either to a custom parameter name or a standard Windchill system attribute (using the server-side preferences mapping functionality) to put the values of the Windchill system attribute into a parameter. The labels that should be used are listed in the next table. If a parameter does not apply to an object type, the parameter is dropped.
CATIA V5 Default Parameters
Parameter Name
Description
Applies To
CAT DEFINITION
Populates the Definition text field.
Parts and products
CAT:DESCREF
Populates the Description text field.
Parts and products
CAT:DRAW_COMMENT
Drawings
CAT:DRAW_RESPON
Drawings
CAT:NOMENCLATURE
Populates the Nomenclature text field
Parts and products
CAT:PART_NR
Populates the Part Number text field.
Parts and products
CAT:REVISION
Populates the Revision text field.
Parts and products
CAT:SOURCE
Populates the Source list choices (Unknown, Made, Bought) text field.
Parts and products
CAT:UUID
Populates CAD document UUID value.
Parts and products
CAT:MATERIAL
Populates the material name assigned to CAD document.
Parts

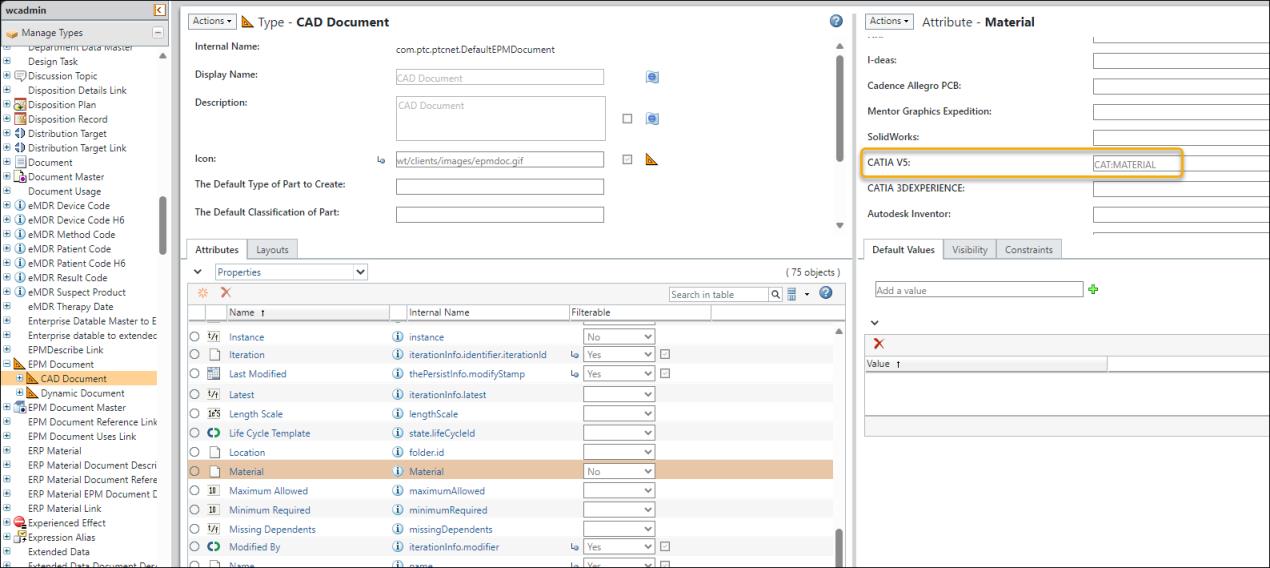

You can find the parameter name on the attribute panel.
