How the Revision Scheme Can Be Used

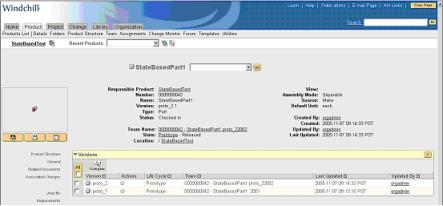

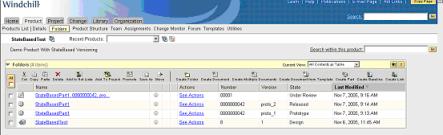

The screenshots below show examples of a WTPart created and associated to the above Lifecycle. The part initially started as version proto_1 and was revised to proto_2.
The part was then promoted to the “Released” phase, then revised again.
*

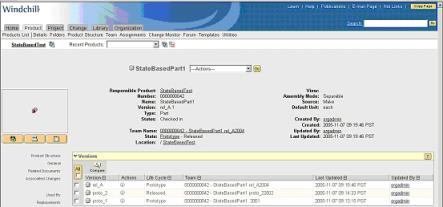

The version now shows rel_A, as defined in the StateBasedVersioning.xml file in the beginning.
*
This procedure should be performed immediately after installation, and before any objects are created in the Windchill system. If objects have already been created using a different versioning scheme, then the behavior when these objects are revised will be unpredictable.
