Use Case 4: Filter a Part Structure Using Multiple Expressions
Consider a scenario where the following structure is present in the upstream view of BOM Transformer:
Requirement
The filtered part structure must satisfy at least one of the following two conditions:
The filtered part structure must display parts that belong to a specific plant
The filtered part structure must display parts that satisfy specific department data criteria
Expressions in Plant Filter tab:
{Plant Data: View = Berlin}
(Logistics State = In Work)

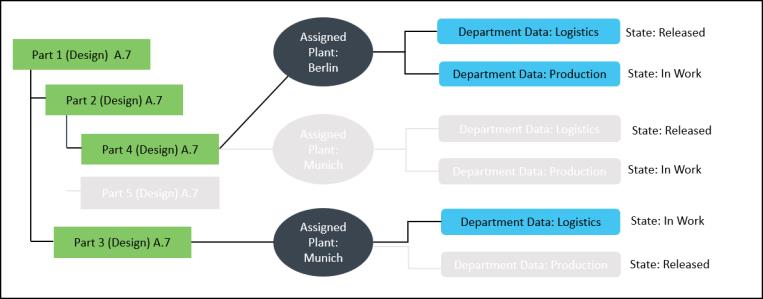

After you set the plant filter criteria in the Edit Filter dialog box, click OK. The following filtered structure is displayed in BOM Transformer:
