Editing a Co-produce object
You can use the
Editing > action in the BOM Transformer to edit the attributes of a co-produce object. This action is visible only when you select a co-produce object in the tree structure of the BOM Transformer.
Editing > action in the BOM Transformer to edit the attributes of a co-produce object. This action is visible only when you select a co-produce object in the tree structure of the BOM Transformer.It is recommended that before editing a co-produce object, you must revise the part under which you have added the co-produce object. This helps the system to track the usage history of co-produce object associated with a finished part. For more information, see Manufacturing History Object.
Perform the following steps to edit the attributes of a Made From Set object:
1. Select the co-produce object in the tree structure of the BOM Transformer.

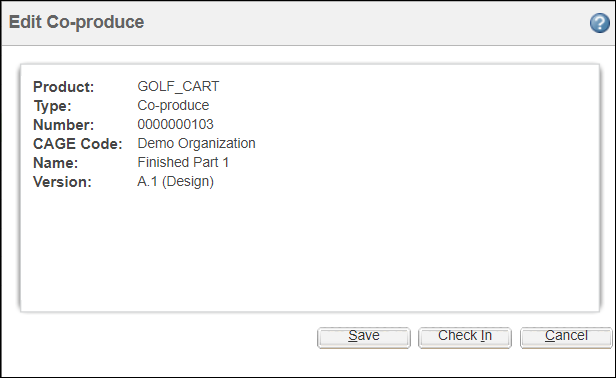

2. Click Editing > . The Edit Co-produce dialog box opens.
Editing > . The Edit Co-produce dialog box opens. | Alternatively, right-click and select > to open the Edit Co-produce dialog box. |
The Edit Co-produce dialog box displays the co-produce object details. If you create any custom attribute for the co-produce object, the Edit Co-produce dialog box also displays the custom attributes that you have created for the co-produce object.
3. Click Check In to check in the object.
| | Optionally, you can also click Save. In this case, the co-produce object remains checked out. |
Additional Information
• You can also edit the custom attribute information for a co-produce object using the Attributes tab in BOM Transformer.
