Configurable Link Collection Sample UI
You can view the collector definitions for customizable links in the Configurable Links Collector Example toolbar available in the Actions menu of Windchill.
The Configurable Links Collector Example toolbar uses the information specified in the SampleConfigurableLinksCollectionDefinitions.xml and SampleConfigurableLinksCollectionExecutionOrder.xml files.
*
The Collect Configurable Links toolbar is visible only when the value of the property com.ptc.core.collection.show.configurable.links.ui in wt.properties is set to true.
The sample user interface for the collection of configurable link contains the following:
Icon
Description
Collect related describe child objects
Collect related master child objects
Collect related reference child objects
Collect related revision child objects
Collect related describe parent objects
Collect related master parent objects
Collect related reference parent objects
Collect related revision parent objects
Preference for Collecting Configurable Links
The preference required for collecting the configurable links, are created automatically based on the configurations specified in the CollectionComponentConfig.xml that is located at {Install_Home}/codebase/com/ptc/core/htmlcomp/collection.
The system will add or remove preferences after the UI is accessed for the first time after a method server restart.

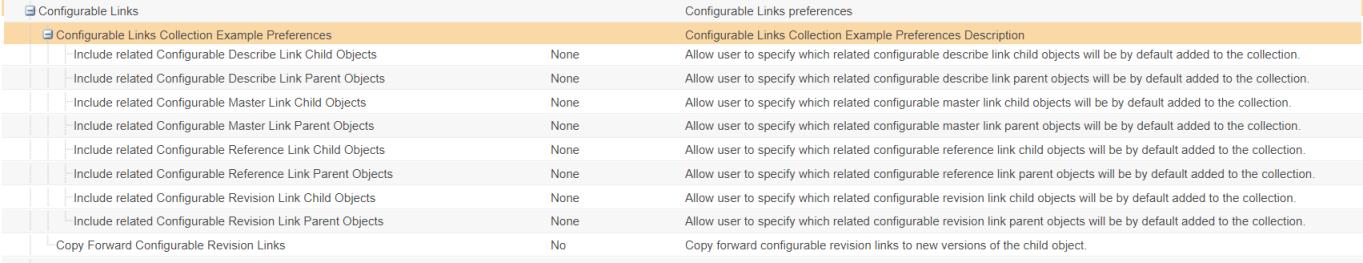

After accessing the UI, these preferences are available under the Collector for the UI where you added or removed the buttons. The sample UI provided by PTC for testing adds preferences to Configurable Links > Configurable Links Collection Example Preferences.
