Current and Previous Values for Change Types

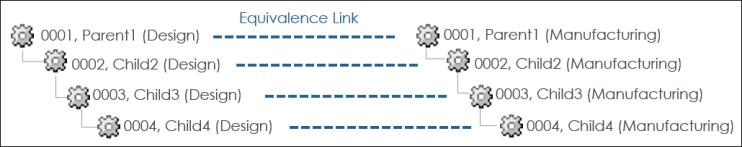

The table in the Upstream Changes and Resulting Downstream Changes panels displays the updated part details with the current and previous values for a change type. The table given below illustrates examples of the current and previous values for each type of change. The following structure is considered for the example:
Change Type | Current Value | Previous Value |
|---|---|---|
Added Parts | Path from the parent node to the added part using pipe character (|). For example, if Child5 (0005) is added under Child2 in the given example, the path displayed is 0001|0002|0005. | Blank. |
Control Characteristics | Added control characteristic in the format: Control Characteristic – number, name. For example, Control Characteristic – 000306, CC1. Blank if a control characteristic is removed. | Removed control characteristic in the format: Control Characteristic – number, name. For example, Control Characteristic – 000413, CC7. Blank if a control characteristic is added. |
Effectivity | Updated effectivity values of a part in the format: Type: | Context: | Qualifier: | Range:. For example, for changes in date effectivity on Child3, the current value displays: Type: Date| Context: 0003| Qualifier: Exact| Range 3/12/2019 – 3/19/2019. | Previous effectivity values of a part in the format: Type: | Context: | Qualifier: | Range:. For example, for changes in date effectivity on Child3, the previous value displays: Type: Date| Context: 0003| Qualifier: Exact| Range 2/18/2019 – 2/25/2019. |
Flexible Representation | Path from the parent node that holds flexible features to the child part with the updated flexible representation, using pipe character (|) as a separator. For example, if Child3 is updated and Parent1 holds the flexible representation feature in the given example, the path displayed is 0001|0002|0003. Blank if a flexible representation is removed. | Path from the parent node that holds flexible features to the child part with the updated flexible representation, using pipe character (|) as a separator. For example, if Child3 is updated and Parent1 holds the flexible representation feature in the given example, the path displayed is 0001|0002|0003. Blank if a flexible representation is added. |
Occurrence Expressions | Updated value of an occurrence expression assigned to a part. For example, (BLUE). | Previous value of an occurrence expression assigned to a part. For example, (RED). |
Out of Position | Updated X, Y, and Z coordinate values and X, Y, and Z axis values for a part. For example, 1.0m 2.0m 3.0m 6.0r 7.0r 8.0r. | Previous X, Y, and Z coordinate values and X, Y, and Z axis values for a part. For example, 0.0m 2.0m 1.0m 5.0r 0.0r 0.0r. |
Part Attributes | Updated attribute value of a part. For example, Source=Make. | Previous attribute value of a part. For example, Source=Buy. |
Quantity | Updated quantity value. For example, 2.0. | Previous quantity value. For example, 1.0. |
Removed Parts | Blank. | Path from the parent node to the removed part using pipe character (|) as a separator. For example, if Child3 is removed in the given example, the path displayed is 0001|0002|0003. |
Replaced Parts | Path from the parent node to the replaced part using pipe character (|) as a separator. For example, if Child3 is replaced with Child6 (0006) in the given example, the path displayed is 0001|0002|0006. | Path from the parent node to the previous part using pipe character (|) as a separator. For example, if Child3 is replaced with Child6 (0006) in the given example, the path displayed is 0001|0002|0003. |
Usage Attributes | Updated value of a usage attribute. For example, Find Number=10. | Previous value of a usage attribute. For example, Find Number=40. |
Usage Expressions | Updated value of a usage expression assigned to a part. For example, (BLUE). | Previous value of a usage expression assigned to a part. For example, (RED). |
