This is the abstract class implementing the interface ESIRenderer and is extended by all the process plan renderer classes provided by ESI services. See BasicESIRenderer for more information on BasicESIRenderer.

This class extends the abstract base class BasicESIRenderer, thereby inheriting the capabilities of that class. The ESIProcessPlanRenderer class is intended to be extended by customizers. It has several attributes that are accessible to subclasses in read-only mode. The attributes have protected getter methods. Because the renderer state is expected to be established by the setData() method, the attributes do not have setter methods.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

It extends the abstract base class BasicESIRenderer, thereby inheriting the capabilities of that class. The ESIProcessPlanHeaderRenderer class is intended to be extended by customizers. It has several attributes that are accessible to subclasses in read-only mode. The attributes have protected getter methods. Because the renderer state is expected to be established by the setData() method, the attributes do not have setter methods.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

It extends the abstract class BasicESIRenderer and is instantiated and used by an ESIProcessPlanRenderer instance, for rendering the MPMPartToProcessPlanLink objects that link a process plan to its parts. Besides fetching the MPMPartToProcessPlanLink attributes and mapping them to the output as required, this renderer stores the associated parts in a collection. The ESIProcessPlanRenderer instance looks up this collection and renders the parts in the collection using an appropriate renderer. Windchill release 11.0 onwards this renderer will also render a MPMPartToProcessPlanLink that associated ProcessPlan with Resource structure as well.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

It extends BasicESIRenderer, and is instantiated and used by an ESIProcessPlanRenderer instance, for rendering the MPMStandardProcedureLink objects that link a process plan to its standard procedures. Besides fetching the MPMStandardProcedureLink attributes and mapping them to the output as required, this renderer stores the associated standard procedures in a collection. The ESIProcessPlanRenderer instance looks up this collection and renders the standard procedures in the collection using an appropriate renderer.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

This class is instantiated and used by an ESIProcessPlanRenderer instance for rendering the MPMSequenceUsageLink objects that link a process plan to its sequences. Besides fetching the MPMSequenceUsageLink attributes and mapping them to the output as required, it stores the associated sequences in a collection. The ESIProcessPlanRenderer instance looks up the sequences in this collection and renders them using an appropriate renderer.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

This class is instantiated and used by an ESIProcessPlanRenderer instance, for rendering the MPMOperationUsageLink objects associated with the process plan being rendered. Besides fetching the MPMOperationUsageLink attributes and mapping them to the output as required, it stores the associated operations in a collection. The ESIProcessPlanRenderer instance looks up the operations in this collection and renders them using an appropriate renderer.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

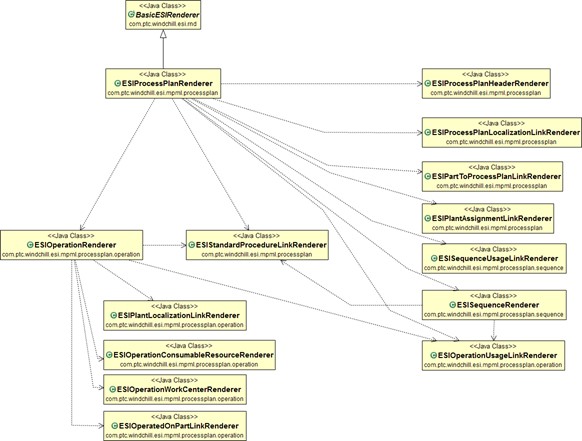

This class is instantiated and used by an ESIProcessPlanRenderer instance for rendering the operations associated with a process plan. The ESIOperationRenderer instance in turn uses several other renderers for rendering the various links and objects associated to the operation being rendered, which are described in subsequent sections.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

This class is instantiated and used by an ESIProcessPlanRenderer instance for rendering the sequences associated with a process plan. The ESISequenceRenderer instance in turn uses several other renderers for rendering the various links and objects associated to the sequence being rendered, which are described in subsequent sections.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

It is instantiated and used by an ESIOperationRenderer instance for rendering the work instructions associated with the operation being rendered.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

This class is instantiated and used by an ESIOperationRenderer instance for rendering the MPMOperationToOperatedPartLink objects associated to the operation being rendered. Besides fetching the MPMOperationToOperatedPartLink attributes and mapping them to the output as required, it stores the associated part master objects in a collection. The ESIProcessPlanRenderer instance looks up the objects in this collection, fetches the corresponding part iterations and renders them using an appropriate renderer.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

It is instantiated and used by an ESIOperationRenderer instance for rendering the MPMOperationToConsumableLink objects associated to the operation being rendered. Besides fetching the MPMOperationToConsumableLink attributes and mapping them to the output as required, it stores the associated consumable resources in a collection. The ESIOperationRenderer instance looks up the objects in this collection, and renders them using an appropriate renderer.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

It is instantiated and used by an ESIOperationRenderer instance for rendering the MPMOperationToWorkCenterLink objects associated to the operation being rendered.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

This class is instantiated and used by certain renderers for rendering the Alternate Unit of Measure information associated with each of the following types of objects – WTPartMaster, MPMProcessPlanMaster, MPMSequenceMaster, MPMOperationMaster, MPMToolingMaster, MPMProcessMaterialMaster and MPMSkillMaster. The renderers that use this class are ESIWTPartRenderer, ESIProcessPlanHeaderRenderer, ESISequenceUsageLinkRenderer, ESIOperationUsageLinkRenderer, ESIToolingRenderer, ESIProcessMaterialRenderer and ESISkillRenderer respectively. See the Publishing Resources section for more information on the ESIToolingRenderer, ESIProcessMaterialRenderer and ESISkillRenderer.

The type of master object that holds the Alternate Unit of Measure information. The values that this attribute will be set to for various object types are as follows:

com.ptc.windchill.esi.Part – WTPartMaster

com.ptc.windchill.esi.mpml.ProcessPlan – MPMProcessPlanMaster

com.ptc.windchill.esi.mpml.Sequence – MPMSequenceMaster

com.ptc.windchill.esi.mpml.Operation – MPMOperationMaster

com.ptc.windchill.esi.mpml.Tooling – MPMToolingMaster

com.ptc.windchill.esi.mpml.ProcessMaterial – MPMProcessMaterialMaster

com.ptc.windchill.esi.mpml.Skill – MPMSkillMaster

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

This class is instantiated and used by each of the following renderers for rendering the documents associated with a process plan, a sequence, an operation, a tooling, a process material or a skill respectively – ESIProcessPlanRenderer, ESISequenceRenderer, ESIOperationRenderer, ESIToolingRenderer, ESIProcessMaterialRenderer and ESISkillRenderer. See the Publishing Documents section for more information on the class ESIDocumentsRenderer and other related information.

This class is instantiated and used by the part, process plan and operation renderers for rendering the control characteristics (and their model items) associated to a part, to a process plan or to an operation respectively. The class extends BasicESIRenderer and resides in the package com.ptc.windchill.esi.mpml.pmi.

Refer to the Windchill release specific Java Documentation for more details on available attributes and methods in the class.

This class extends BasicESIRenderer and resides in the package com.ptc.windchill.esi.mpml.pmi It is instantiated and used by the control characteristic renderer for rendering the quality links that associate a part, a process plan or an operation to the control characteristics being rendered.

Refer to the Windchill release specific Java documentation for more details on available attributes and methods in the class.

This class resides in the package com.ptc.windchill.esi.mpml and provides a number of utility (or helper) APIs for rendering manufacturing objects. For example, it provides compareXXX() APIs that compare any two given iterations of business objects (such as parts, process plans, operations or sequences) and return the result (consisting of difference information pertaining to links and their attributes) in a HashMap.

This class is not meant to be extended by customizers. For more information on the compareXXX() (and various other) APIs of this class and their descriptions, refer to the Javadoc.

This interface resides in the package com.ptc.windchill.esi.mpml.delegate and provides a number of utility (or helper) APIs for rendering manufacturing objects. For example, it provides compareXXX() APIs that compare any two given iterations of business objects (such as parts, process plans, operations or sequences) and return the result (consisting of difference information pertaining to links and their attributes) in a HashMap.

For more information on the compareXXX() (and various other) APIs of this class and their descriptions, refer to the Javadoc.

This class resides in the package com.ptc.windchill.esi.mpml.delegate and is the default implementation of ESIMPMLDifferenceManagementDelegate. It provides a number of utility (or helper) APIs for rendering manufacturing objects. For example, it provides compareXXX() APIs that compare any two given iterations of business objects (such as parts, process plans, operations or sequences) and return the result (consisting of difference information pertaining to links and their attributes) in a HashMap.
