Creating Multiple Split Assemblies in Downstream View from Assemblies in Downstream View
Use the
New Split Assemblies action in the downstream view to create split assemblies in the downstream view from existing assemblies in the downstream view.
To create multiple split assemblies in the downstream view from existing assemblies in the downstream view, perform the following steps:
1. Select one or more assemblies in the downstream view.
| All the selected assemblies must have the same immediate parent part. |
2. In the downstream view, select > . The New Split Assemblies dialog box opens. It contains the Assemble Under and Set Parameters steps.
The Assemble Under step lets you create a new assembly or use an existing assembly. The details of the existing assembly, if any, appears in the step.
3. In the Assemble Under step, perform the following actions based on your business requirement:
◦ Click
![](../../Windchill_Help_Center/images/addrow.png)
Add Row to create a new row. Specify a name for the assembly and optionally provide the
View,
Location,
BOM Type, and
Alternate BOM type details.
| You can add a new row even if an existing split assembly is present in the Assemble section. |
◦ Use
![](../../Windchill_Help_Center/images/row_select_remove.png)
to remove an existing split assembly or a newly added row.
| When you use ![](../../Windchill_Help_Center/images/row_select_remove.png) to remove an existing split assembly, only the entry is removed from the New Split Assemblies dialog box. The split assembly is not removed from the downstream view. |
◦ Select the Replace all usages in the structure checkbox to replace all the usages of the selected assembly with the newly created split assembly.
| • The resources listed in the Part section of Type and Attribute Management are not listed in the Type list. • The default part or the subpart that is displayed in the Type list depends on the value that you set in the following preferences: ◦ > > ◦ Structure Transformation Type Mapping List |
Select the assemblies and click
![](../../Windchill_Help_Center/images/EditAttributeValueIcon.jpg)
Edit Attribute Value to set any of the mandatory soft-type attributes of objects selected for the action. In the
Edit Attribute Value dialog box, the
Set list contains a list of required soft attributes that are currently displayed in the columns of the
Assemble Under tab. Depending on the attributes that are selected in the
Set list, the
To field presents a list or an input panel. Click
Apply to set the value and to leave the
Edit Attribute Value dialog box open. You can also click
OK to exit the
Edit Attribute Value dialog box and return to the
Assemble Under step, where the newly set value is displayed. For more information, see
Setting Attribute Values.
| After adding rows in the New Split Assemblies dialog box, if you change the soft-type attributes, the entries of the added rows are no longer visible. The Type list is also updated. |
4. Click Next to move to the Set Parameters tab.
5. On the Set Parameters tab, the attributes of the selected part and its first-level child parts appear.
Attribute | Description |
---|
Quantity | Provides information about the quantity of first-level child parts. |
Existing Downstream Object | Creates a split assembly under an existing downstream object. | You can choose to create a split assembly under a new part by using the Transformation Type list. |
• The Existing Downstream Object list is empty if no downstream objects exist. • The Transformation Type list is enabled when no downstream object from the Existing Downstream Object list is selected. |
Transformation Type | Select one from the following transformation types: • Add Same –This is the default selection in the Transformation Type column. Select this option when you want the parts to be consumed as is. In this case, the part number and the view of the parts consumed in the downstream view remains the same. The behavior of the Add Same selection is same as the Paste action in BOM Transformer. • New Branch—The behavior of the New Branch selection is same as the Paste as New Branch action in BOM Transformer. In this case, the part number of the parts consumed in the downstream view remains the same; however, the view changes. • New Part—The behavior of the New Part selection is same as the Paste as New Part action in BOM Transformer. In this case, the part number and the view of the parts consumed in the downstream view changes. Use the ![](../../Windchill_Help_Center/images/EditAttributeValueIcon.jpg) Edit Attribute Value action in the Set Parameters step to select the same transformation type for multiple split assemblies. To do that, select the assemblies for which you want to set the transformation type and click Edit Attribute Value. The Edit Attribute Value dialog box opens. In the Edit Attribute Value dialog box, the Set list contains the same options that appear in the Transformation Type column. Select one of the options and click OK. Note: You can use the ![](../../Windchill_Help_Center/images/EditAttributeValueIcon.jpg) Edit Attribute Value action only if you have not selected anything in the Existing Downstream Object list for the selected split assemblies. |
You can also make use of the following actions available in the Set Parameters tab:
Action | Description |
---|
Show Occurrences and Hide Occurrences | When selected, displays each occurrence of a part as a separate object in the Set Parameters tab. If hidden, you can determine the number of occurrences of a part by the Quantity column. |
Enable Select in Structure and Disable Select in Structure | When selected, the selected part or occurrence in the Set Parameters tab is highlighted and selected in the downstream tree structure and on the Visualization tab. |
6. Click Finish. The new split assemblies are created.
◦ If you have selected the Replace all usages in the structure check box in the Assemble Under step, all the usages of the selected assembly are replaced with the split assembly.
◦ If you have not selected the Replace all usages in the structure check box in the Assemble Under step, only the usage of the selected assembly is replaced with the split assembly.
Key Points Related to the New Split Assemblies Action in Downstream View
The following considerations apply when using the > action in the downstream view:

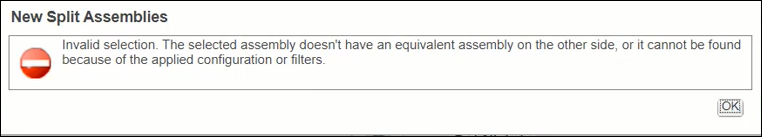

• The following error message appears when you select a non-equivalent part and initiate the > action in the downstream view:
• The
New Split Assemblies action is disabled when multiple parts are selected in the downstream view.
