Use Case 5: Filter Part Structure Based on Effectivity Assigned to Plants and Department Data

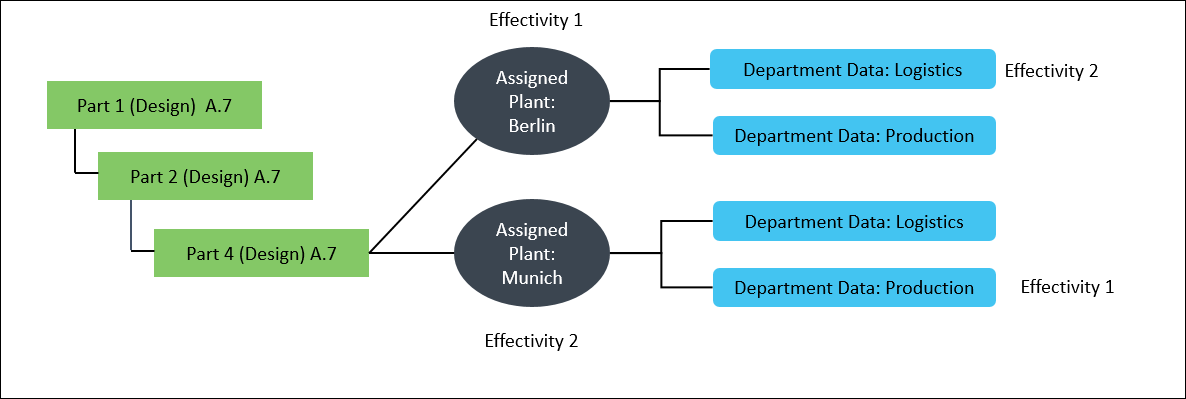

Consider a scenario where the following structure is present in the upstream view of BOM Transformer:
Requirement
Filter the part structure based on the effectivity assigned to plants and department data.
Expressions in Plant Filter tab:
{Plant Data: View = Berlin AND Effectivity = 1}
{Production: Effectivity = 1}
After you set the plant filter criteria in the Edit Filter dialog box, click OK. The following filtered structure is displayed in BOM Transformer:
