Model
*
Because model files are bundled within each experience and may contain confidential information, it is highly recommended that you ensure that the bundled files do not expose IP information that should otherwise be protected.
What Does This Widget Do?
The Model widget allows you to add models to your experience.
When Should I Use This Widget?
Use a Model when you want to include a 3D model in your experience. For information about improving model performance when viewing an experience, see Model Complexity Guidelines.
Are There Any Special Properties, Services, Events, or Actions?
To view a list of common widget properties, services, and events, see Common Widget Properties, Services, and Events.
The following tables list properties, services, and events that are specific to this widget.
Property Name
JavaScript
Type
Description
Resource
src
resource url
Path to the resource being used for the model. For more information about supported formats, see Supported CAD File Formats.
Scale
scale
string
Scale of the model.
X Coordinate
x
number
Location of the model on the x-axis.
Y Coordinate
y
number
Location of the model on the y-axis.
Z Coordinate
z
number
Location of the model on the z-axis.
X Rotation
rx
number
Rotation of the model about the x-axis.
Y Rotation
ry
number
Rotation of the model about the y-axis.
Z Rotation
rz
number
Rotation of the model about the z-axis.
Occluding
occlude
boolean
If set to true, the geometry of a widget is invisible, but at the same time hides any other augmentations behind it in the 3D scene.
Therefore, the background or camera feed appears where the occluded widget should be. This can be used to emphasize some augmentations by hiding surrounding 3D geometry.
Always on top
decal
boolean
Changes the rendering of the model so that it is always on top.
If this checkbox is selected, the model is never hidden by other augmentations.
Opacity (1 Opaque - 0 Transparent)
opacity
number
A number between 0 and 1 that controls the level of transparency of the object. 0=completely transparent and 1=completely opaque. If set to semi-opaque (for example, opacity is set to <1), this will control whether the model it is drawn as a transparent shell (the default), or is entirely see-through.
Current Step
currentStep
number
The current step of the active sequence if any have been specified for the model.
Playing
playing
boolean
Is true when a sequence is playing.
Sequence List
sequenceList
info table
Infotable that provides a list of available sequences for the model. The infotable contains name and filename columns. When bound to a widget, (for example, a Repeater, List, or Select widget) you can easily change the sequence for a model that has multiple sequences.
Sequence
sequence
resource url
Path to the active animation sequence. This drop-down list is automatically populated with available .pvi files when a .pvz file is selected for the Resource property. Two sequences should not be run at the same time.
*
Sequences created with Creo Illustrate 8.1 or below are supported.
Apply sequence at design time
showSequenceInCanvas
boolean
Affects the appearance of the model within Vuforia Studio during design time. When this checkbox and a sequence is selected, the initial step of the sequence is applied directly in the design view. When this checkbox is not selected, the model appears in its default state.
Steps
steps
number
Total number of steps in the active sequence.
Service Name
JavaScript
Description
Forward
forward
Moves a sequence forward one step.
Play
play
Plays the sequence from the current position.
Play All
playAll
Plays the sequence from the current position without stopping between steps.
Reset
reset
Resets all models in the view to the first step.
Rewind
rewind
Moves a sequence back one step.
Stop
stop
Stops the sequence at its current position.
Event
JavaScript
Description
Play Started
playstarted
Triggered when a step in the sequence begins to play.
Play Stopped
playstopped
Triggered when a step in the sequence stops playing. Passes a data object parameter providing information about the step.
Model Loaded
modelLoaded
Triggered when the model is fully loaded.
Acknowledge Requested
acknowledgeRequested
Triggered when an acknowledgement is requested during a sequence.
*
Use the JS expression box to create custom interactions for the acknowledgement.
*
To override all other visibility settings and hide the model and all items related to it, bind one of the following widget properties to the model, and select Force Hide on the Select Binding Target window:
2D Widget
Property
Checkbox
Value
Toggle
Value
Toggle Button
Pressed
Not Pressed
This also overrides any visibility as set by the selected sequence.
The Widget in Action

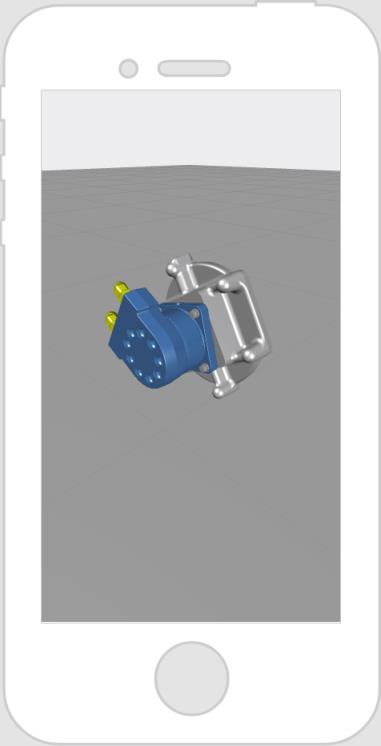

Here’s an example of what your widget might look like!
Minimum Steps Required for Use
What It Looks Like
1. Drag and drop a Model widget onto the canvas.
2. In the Resource field, select an existing CAD file, add a new one, or enter the URL to the file you want to display.
3. Position the model on the canvas as you want.
