Configure ThingWorx as a Resource Provider
Configure the resourceServerSettings.json File
This procedure is required when ThingWorx is the Resource Server application.
1. Stop the ThingWorx server.
2. Create the resourceServerSettings.json file in the same directory as sso-settings.json.
The following is a sample structure of the resourceServerSettings.json file:
{
 "ResourceServerSettings": {
	"accessTokenServicesSettings": {
		"tokenUsernameAttribute": "See information in the table below",
		"tokenPublicKeyUrl": "See information in the table below",
		"administratorAlias": "See information in the table below",
		"administratorInternalName": "Administrator",
		"issuer": "See information in the table below",
		"tokenValidationType": "local",
		"tokenClientIDAttribute": "See information in the table below"

	},
	"globalScopes": "See information in the table below",
	"scopeClaimName: "See information in the table below",
	"uriScopes": [
	{
		"uri": "See information in the table below",
		"scopes": "See information in the table below",
		"method": "See information in the table below"
	}
 ]
}
3. Ensure that you edit the value of every parameter as per your requirement. Your implementation may vary depends on several factors, such as the security policies of your organization and the CAS for your federation. Use the information in the following tables as guidance to set values for different parameters.
4. Start the ThingWorx server.
ResourceServerSettings.accessTokenServicesSettings Settings
Parameter
Description
Value
tokenUsernameAttribute
Optional: The claim name that holds the username for the resource request.
Default value: “unique_name”
tokenPublicKeyUrl
Mandatory: The AD FS public key endpoint (used to validate the access tokens).
The value is constructed as follows:
https://<ADFS host FQDN>adfs/discovery/keys
administratorAlias
Optional.
Mandatory only if you want to access RP with ThingWorx administrator.
*
If already configured in the sso-settings.json file, there is no need to set the value here.
The administrator username as it is configured in AD FS.
administratorInternalName
Optional: The administrator username as it is configured in ThingWorx.
Administrator
tokenValidationType
Mandatory: The property point that the access token (JWT) validation done locally.
local
issuer
Optional: Issuer value for additional token validation check.
The issuer value as it appears in the ISS claim in the token.
tokenClientIDAttribute
Required for the M2M (Client Credential) flow. The claim name that holds the SP clientID for the resource request.
*
To accept OAuth (M2M) AccessToken, an artificial user with the name of the SP ClientID value should be created in the ThingWorx RP application.
appid
ResourceServerSettings.globalScopes Settings
Parameter
Description
Value
globalScopes
List of comma-separated global scopes. accessToken should contain at least one of them to access any resource. If the parameter is missing or empty, THINGWORX is a default global scope.

"globalScopes": "THINGWORX
"globalScopes": "THINGWORX_APP1,THINGWORX_APP2"
scopeClaimName
Optional. The default value is scp.
ResourceServerSettings.uriScopes Settings
Parameter
Description
Value
uri
URI pattern. Defines the resource or resource group that requires additional scope(s) to the global scope(s).

Thingworx/Things/** - control all Things
Thingworx/Things/Thing1 – control Thing1
scopes
Comma-delimited list of additional scopes. Only the user that has grants to all listed scopes (including global) is allowed to get resource.
method
Optional. Defines the URI method that the scope will be applied to.
*
If a method property is not supplied, then it is assumed that the specified URI is protected by the given scope for all of the HTTP method.
Possible values are any methods allowed in REST protocol, such as GET or POST.
If there are scopes defined for an URI, then the global scopes plus the defined URI scopes must be granted to access that resource. If there is more than one URI rule applicable for the requested resource, then all relevant scopes must be granted to access that resource. To avoid access to restricted resources, add URIscope to these REST end points with a scope that does not exist in the Authorization server. In addition to scope protection, ThingWorx has its own user-based permissions that will also be applied on top of the scopes. For example, in a case where User A requests a resource with the correct scopes but does not have permission, the request fails with a 403 error.

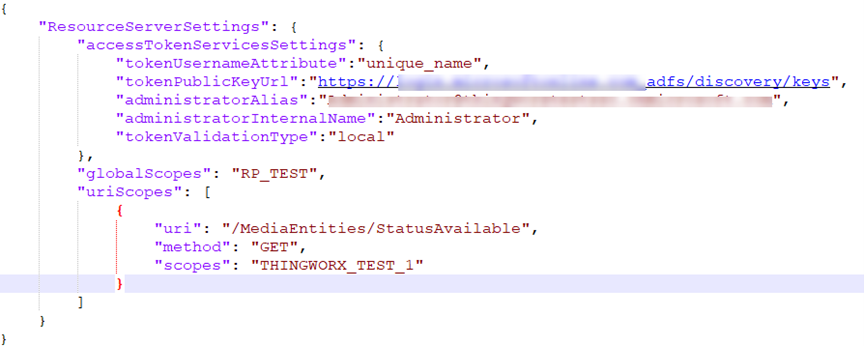

Example File
