Fichiers de conception
Fichiers de conception est une configuration prédéfinie du composant Liste des éléments qui affiche une liste de fichiers de conception pour les articles et les documents CAO, comprenant des documents descripteurs, des documents de référence, des pièces jointes et des représentations. Fichiers de conception présente des fonctionnalités similaires à celles de Liste des éléments en matière de recherche, de tri, de filtrage et de restauration des valeurs par défaut. Pour chaque fichier, Fichiers de conception affiche les attributs que vous pouvez choisir lors de la configuration. Les attributs par défaut sont Nom et Formats, qui sont des attributs personnalisés. L'attribut Nom contient un lien de téléchargement du fichier. L'attribut Formats contient un menu déroulant présentant tous les autres formats disponibles pour le téléchargement et ne s'applique qu'aux représentations.

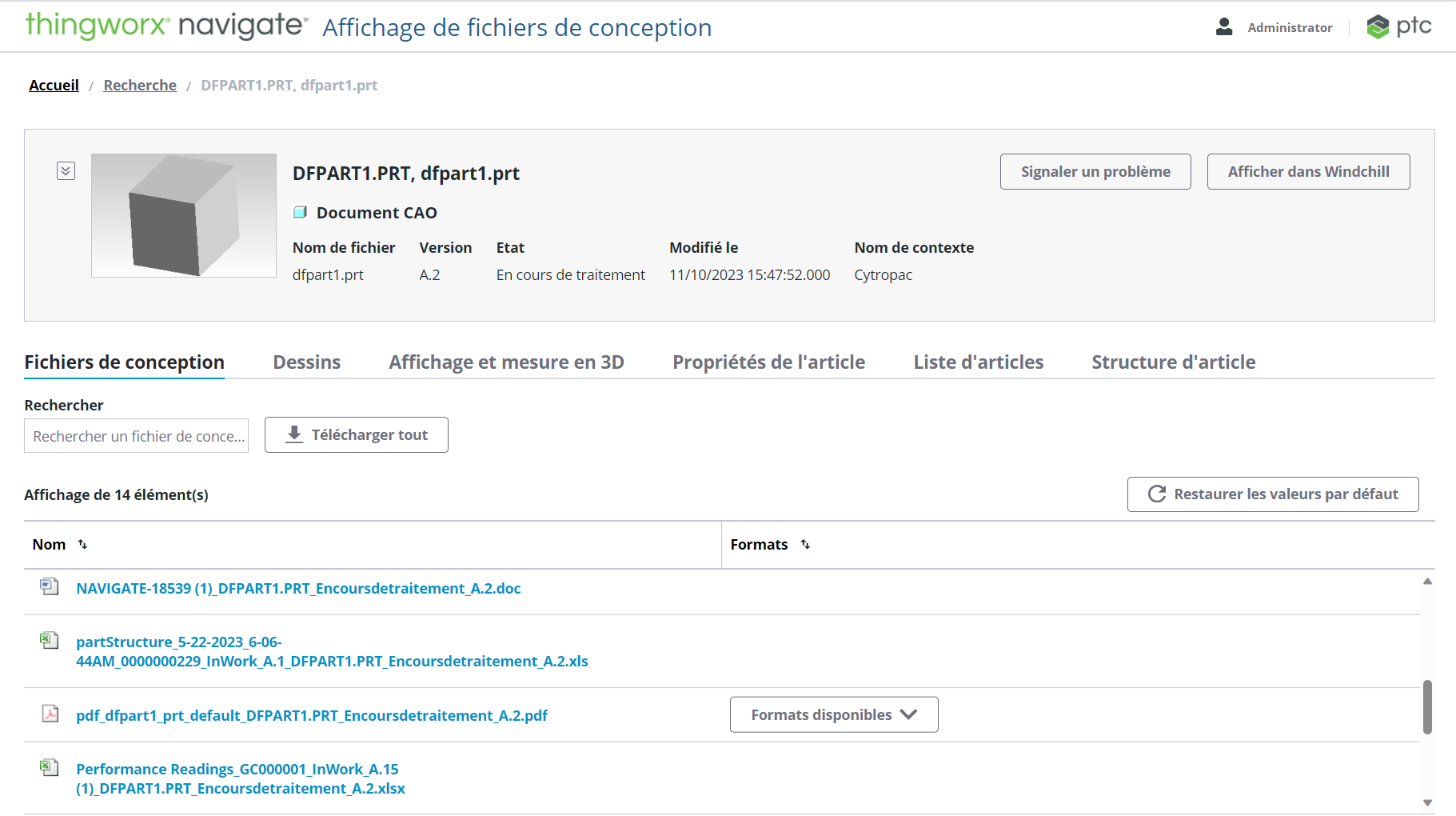

La capture d'écran suivante vous donne un aperçu de la configuration prédéfinie Fichiers de conception :
Propriétés de liaison
Pour plus d'informations sur la liaison de Fichiers de conception, consultez la rubrique relative au composant Liste des éléments.
 | • Pour Fichiers de conception, la propriété de liaison d'entrée prend en charge les types d'objets PTC.CADDocumentMgmt.CADDocument et PTC.ProdMgmt.Part. • La sortie de la propriété de liaison selectedItems contient des éléments avec les types d'objets PTC.ContentItem et PTC.VisualizationRepresentation. |
Propriétés de configuration
Pour obtenir la liste de toutes les propriétés de configuration disponibles pour les Fichiers de conception, consultez le tableau Propriétés de configuration du composant Liste des éléments. Le tableau suivant fournit des informations supplémentaires spécifiques aux Fichiers de conception concernant les propriétés de configuration.
Pour plus d'informations sur la structure de la configuration, consultez la rubrique Structure de configuration du composant.
Pour plus d'informations sur les sous-propriétés, consultez la rubrique Sous-propriétés et clés de conteneur.
Nom de propriété | Description | Type de propriété | Valeur par défaut | Obligatoire ou facultatif ? | |||
|---|---|---|---|---|---|---|---|
fileFormatSelection | Détermine les formats de fichier de représentation à récupérer et à afficher dans le menu déroulant de la colonne Formats. Cette sous-propriété n'est pertinente que lorsque la clé representations est incluse dans la propriété relationships. Options : • specifiedFormats : récupère uniquement les formats de fichier spécifiés. Utilisez la propriété formats pour spécifier les formats de fichier à inclure. Les formats de fichier s'affichent dans le menu déroulant, dans l'ordre dans lequel ils sont répertoriés dans la propriété formats. • allFormats : récupère tous les formats de fichier disponibles. Si un format PDF est disponible pour le fichier de conception, la colonne Nom contient un lien de téléchargement du PDF, et PDF est le premier format répertorié dans le menu déroulant.
Cette sous-propriété est placée sous la propriété designFileImplementationDefinition dans la configuration du composant. | specifiedFormats | Obligatoire | ||||
showImplementationActions | Lorsque cette propriété comprend la clé downloadZip, Fichiers de conception inclut un bouton Télécharger tout dans la barre d'actions intégrée. Ce bouton permet aux utilisateurs de télécharger tous les fichiers de conception. downloadZip est la seule valeur prise en charge par Fichiers de conception pour cette propriété. | N/A | Facultatif | ||||
formats | Liste des formats spécifiés à récupérer pour les représentations. Les formats doivent être séparés par un espace. L'ordre dans lequel les formats sont répertoriés ici détermine leur ordre d'affichage dans le menu déroulant de la colonne Formats. Cette propriété est une sous-propriété de fileFormatSelection et est uniquement pertinente lorsque fileFormatSelection est défini sur specifiedFormats. | PDF DXF PLT CGM | Obligatoire | ||||
relationships | Liste des types de fichiers de conception à afficher en fonction de la relation avec l'article ou le document CAO. Peut inclure une ou plusieurs des clés suivantes : • describedByDocuments pour afficher les documents descripteurs ; • referenceDocuments pour afficher les documents de référence ; • attachments pour afficher les pièces jointes ; • representations pour afficher les représentations.
| N/A | Obligatoire | ||||
attributes | Pour plus d'informations, consultez la rubrique Liste des éléments. Accepte les attributs des types d'objet PTC.ContentItemet PTC.VisualizationRepresentation. En outre, accepte les attributs Name et Formats, qui présentent respectivement les types d'objets PTC.Nav.DesignFiles.Custom.Implementation et PTC.Visualization.Representation.Custom.Implementation. | N/A | Obligatoire | ||||
defaultSortField | Pour plus d'informations, consultez la rubrique Liste des éléments. Accepte les attributs des types d'objet PTC.ContentItemet PTC.VisualizationRepresentation. En outre, accepte les attributs Name et Formats, qui présentent respectivement les types d'objets PTC.Nav.DesignFiles.Custom.Implementation et PTC.Visualization.Representation.Custom.Implementation. | N/A | Facultatif | ||||
Exemple de configuration
{
"showImplementationActions":{
"selected":[
{
"key":"downloadZip"
}
]
},
"selectionType":{
"selectedKey":"none"
},
"waitForInput":{
"value":true
},
"implementationConfiguration":{
"inTailoring":true,
"value":{
"relationships":{
"selected":[
{
"key":"describedByDocuments"
},
{
"key":"referenceDocuments"
},
{
"key":"attachments"
},
{
"key":"representations",
"additionalData":{
"designFileImplementationDefinition":{
"value":{
"fileFormatSelection":{
"selectedKey":"specifiedFormats",
"additionalData":{
"formatsDefinition":{
"formats":{
"value":"PDF DXF PLT CGM"
}
}
}
},
"fileSelection":{
"selectedKey":"defaultFile"
}
}
}
}
}
]
}
}
},
"baseConfigurationVersion":{
"value":"nav.3"
},
"implementationConfigurationVersion":{
"value":"nav.1"
},
"defaultSortFields":{
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"additionalData":{
"itemListDefaultSortFieldDefinition":{
"defaultSortDirection":{
"selectedKey":"asc"
}
}
},
"id":"Name"
}
],
"objectType":"PTC.Nav.DesignFiles.Custom.Implementation"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
}
},
"attributes":{
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"id":"Name",
"ordinal":0
}
],
"objectType":"PTC.Nav.DesignFiles.Custom.Implementation"
},
{
"items":[
{
"id":"Formats",
"ordinal":1
}
],
"objectType":"PTC.Visualization.Representation.Custom.Implementation"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
}
},
"label":{
"value":""
},
"showExportAction":{
"value":false
},
"enableSearch":{
"additionalData":{
"itemListSearchDefinition":{
"searchHintText":{
"value":"[[PTC.Nav.DesignFiles.FindDesignLabel]]"
}
}
},
"value":true
}
}
"showImplementationActions":{
"selected":[
{
"key":"downloadZip"
}
]
},
"selectionType":{
"selectedKey":"none"
},
"waitForInput":{
"value":true
},
"implementationConfiguration":{
"inTailoring":true,
"value":{
"relationships":{
"selected":[
{
"key":"describedByDocuments"
},
{
"key":"referenceDocuments"
},
{
"key":"attachments"
},
{
"key":"representations",
"additionalData":{
"designFileImplementationDefinition":{
"value":{
"fileFormatSelection":{
"selectedKey":"specifiedFormats",
"additionalData":{
"formatsDefinition":{
"formats":{
"value":"PDF DXF PLT CGM"
}
}
}
},
"fileSelection":{
"selectedKey":"defaultFile"
}
}
}
}
}
]
}
}
},
"baseConfigurationVersion":{
"value":"nav.3"
},
"implementationConfigurationVersion":{
"value":"nav.1"
},
"defaultSortFields":{
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"additionalData":{
"itemListDefaultSortFieldDefinition":{
"defaultSortDirection":{
"selectedKey":"asc"
}
}
},
"id":"Name"
}
],
"objectType":"PTC.Nav.DesignFiles.Custom.Implementation"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
}
},
"attributes":{
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"id":"Name",
"ordinal":0
}
],
"objectType":"PTC.Nav.DesignFiles.Custom.Implementation"
},
{
"items":[
{
"id":"Formats",
"ordinal":1
}
],
"objectType":"PTC.Visualization.Representation.Custom.Implementation"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
}
},
"label":{
"value":""
},
"showExportAction":{
"value":false
},
"enableSearch":{
"additionalData":{
"itemListSearchDefinition":{
"searchHintText":{
"value":"[[PTC.Nav.DesignFiles.FindDesignLabel]]"
}
}
},
"value":true
}
}
Services de personnalisation
En plus de la configuration, chaque composant prend en charge l'extension de sa logique métier afin de le personnaliser. La logique métier de chaque composant inclut des services substituables dans un modèle d'objet que vous pouvez étendre et remplacer. Les services substituables pour ce composant sont détaillés dans le tableau suivant.
Vous trouverez des exemples de renvois et de paramètres pour chaque service à la rubrique Exemples d'entrée/sortie pour les services de personnalisation.
Nom | Description |
|---|---|
GetConfigurations | Renvoie les configurations disponibles pour Fichiers de conception. Paramètres : aucun Renvois : JSON |
GetImplementationSettings | Renvoie les données des paramètres, qui comprennent les données relatives au bouton Télécharger tout. Ces données sont utilisées en interne par l'implémentation Fichiers de conception. Paramètres : aucun Renvois : objet JSON |
GetItems | Renvoie la liste des fichiers de conception du système principal, ainsi que leurs attributs et valeurs. Paramètres : input (obligatoire) : JSON au format CCO qui comprend l'ID d'entrée pour les données à récupérer du système principal et les informations d'adaptateur pour le système principal. configuration (obligatoire) : JSON contenant la configuration. Renvois : JSON au format CCO |
DefHookGetImplementationActionsList | Renvoie les actions répertoriées sous la clé implementationActions dans le service GetImplementationSettings. Paramètres : aucun Renvois : JSON:Array |
DefHookImplementationConfigurationDefinitionGroup | Renvoie la définition de l'implémentation Fichiers de conception avec les configurations personnalisées disponibles. Inclut la définition des propriétés de configuration relationships, fileFormatsToDisplay et specifiedFormats. Paramètres : aucun Renvois : JSON:Array |
