Part Identity
Part Identity is a predefined configuration of the Item Identity component that displays a panel containing basic information about a part or CAD document. The panel includes primary and secondary titles, an image, a secondary icon, and identity attributes. The secondary icon indicates the item type, using the icon from Windchill for that item type. For a part, the default attributes included in the panel are Version, View, State, Last Modified, and Context. For a CAD document, the default attributes included in the panel are File Name, Version, State, Last Modified, and Context. The Part Identity configuration also displays the Report a Problem and View in Windchill actions.

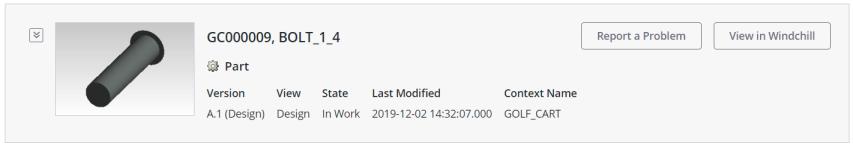

The following is a sample image showing the Part Identity predefined configuration:
Binding Properties
For information on binding Part Identity, see the Item Identity component.
 | For Part Identity, the input binding property supports the PTC.ProdMgmt.Part and PTC.CADDocumentMgmt.CADDocument object types. |
Configuration Properties
For a list of all available configuration properties for Part Identity, see the Configuration Properties table for the Item Identity component. The following table provides additional information that is specific to Part Identity regarding configuration properties.
For more information on the structure of the configuration, see Component Configuration Structure.
For more information on sub-properties, see Sub-Properties and Container Keys.
Property Name | Description | Property Type | Default Value | Required or Optional | |
|---|---|---|---|---|---|
primaryTitle | See Item Identity for more information. Accepts attributes of the PTC.ProdMgmt.Part and PTC.CADDocumentMgmt.CADDocument object types. However, only attributes with the same object type as the input are displayed in the user interface. For example, if you include attributes with both PTC.ProdMgmt.Part and PTC.CADDocumentMgmt.CADDocument object types, and the input is of object type PTC.ProdMgmt.Part, only attributes of object type PTC.ProdMgmt.Part are displayed in the user interface. | N/A | Required | ||
secondaryTitle | See Item Identity for more information. Accepts attributes of the PTC.ProdMgmt.Part and PTC.CADDocumentMgmt.CADDocument object types. However, only attributes with the same object type as the input are displayed in the user interface. For example, if you include attributes with both PTC.ProdMgmt.Part and PTC.CADDocumentMgmt.CADDocument object types, and the input is of object type PTC.ProdMgmt.Part, only attributes of object type PTC.ProdMgmt.Part are displayed in the user interface. | N/A | Required | ||
attributes | See Item Identity for more information. Accepts attributes of the PTC.ProdMgmt.Part and PTC.CADDocumentMgmt.CADDocument object types. However, only attributes with the same object type as the input are displayed in the user interface. For example, if you include attributes with both PTC.ProdMgmt.Part and PTC.CADDocumentMgmt.CADDocument object types, and the input is of object type PTC.ProdMgmt.Part, only attributes of object type PTC.ProdMgmt.Part are displayed in the user interface. | N/A | Required | ||
Sample Configuration
{
"primaryTitle":{
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"numericIdentifier":1,
"id":"Number"
},
{
"numericIdentifier":2,
"id":"Name"
}
],
"objectType":"PTC.ProdMgmt.Part"
},
{
"items":[
{
"numericIdentifier":1,
"id":"Number"
},
{
"numericIdentifier":2,
"id":"Name"
}
],
"objectType":"PTC.CADDocumentMgmt.CADDocument"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
},
"pattern":"%1, %2",
"filteredValues":{
"data":[
{
"itemListsData":[
{
"objectType":""
}
],
"adapter":{
"instanceName":"",
"thingName":""
}
}
]
}
},
"expanded":{
"version":"1.0.0",
"value":true
},
"actionBarConfiguration":{
"value":{
}
},
"showSecondaryIcon":{
"version":"1.0.0",
"value":true
},
"secondaryTitle":{
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"numericIdentifier":1,
"id":"ObjectType"
}
],
"objectType":"PTC.ProdMgmt.Part"
},
{
"items":[
{
"numericIdentifier":1,
"id":"TypeDisplayName"
}
],
"objectType":"PTC.CADDocumentMgmt.CADDocument"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
},
"pattern":"%1",
"filteredValues":{
"data":[
{
"itemListsData":[
{
"objectType":""
}
],
"adapter":{
"instanceName":"",
"thingName":""
}
}
]
}
},
"attributes":{
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"id":"Version",
"ordinal":0
},
{
"id":"View",
"ordinal":1
},
{
"id":"State#Display",
"ordinal":2
},
{
"id":"LastModified",
"ordinal":3
},
{
"id":"Context|Name",
"ordinal":4
}
],
"objectType":"PTC.ProdMgmt.Part"
},
{
"items":[
{
"id":"FileName",
"ordinal":0
},
{
"id":"Version",
"ordinal":1
},
{
"id":"State#Display",
"ordinal":2
},
{
"id":"LastModified",
"ordinal":3
},
{
"id":"Context|Name",
"ordinal":4
}
],
"objectType":"PTC.CADDocumentMgmt.CADDocument"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
},
"inTailoring":true,
"filteredValues":{
"data":[
{
"itemListsData":[
{
"objectType":""
}
],
"adapter":{
"instanceName":"",
"thingName":""
}
}
]
}
},
"showImage":{
"additionalData":{
"itemIdentityShowImageDefinition":{
"defaultImagePath":{
"value":"/Thingworx/MediaEntities/PTC.Nav.ItemIdentity.ThumbnailPart"
}
}
},
"version":"1.0.0",
"value":true
},
"enableExpandCollapse":{
"version":"1.0.0",
"value":true
},
"baseConfigurationVersion":{
"value":"nav.1"
},
"implementationConfigurationVersion":{
"value":"nav.1"
}
}Customization Services
In addition to configuration, each component supports extending its business logic to customize the component. The business logic of each component includes overridable services in a Thing Template that you can extend and override. The overridable services for this component are detailed in the following table.
For examples of returns and parameters for each service, see Examples of Input/Output for Customization Services.
Name | Description |
|---|---|
GetConfigurations | Returns the available configurations for the Part Identity implementation. Parameters: None Returns: JSON |
GetImplementationLabel | Returns either the localized name of the component or the token that can be used to obtain the localized name. This localized name is displayed in the Mashup Builder user interface. Parameters: None Returns: String |
GetItemIdentityAttributes | Checks configuration and adds any additional attributes that are required, and then calls GetAttributeValues to fetch all attribute values from the backend system. If the image or secondary icon are configured to appear, they are added to the returned JSON, so that GetAttributeValues fetches their values from the backend system as well. Parameters: input (Required)– JSON in CCO format that includes the input ID for the data to be fetched from the backend system and the adapter information for the backend system. configuration (Optional)– JSON with the final merged configuration obtained from the Tailoring Manager resource. attributes (Required)– JSON with the list of out-of-the-box attributes, as defined in the configuration or set via tailoring. Returns: JSON |
GetAttributesValues | Returns a JSON with attributes and their values. Parameters: input (Required)– JSON in CCO format that includes the input ID for the data to be fetched from the backend system and the adapter information for the backend system. configuration (Optional)– JSON with the final merged configuration obtained from the Tailoring Manager resource. attributes (Required)– JSON with the list of out-of-the-box attributes and additional attributes. Returns: JSON in CCO format |
Implementation Definition
{
"array": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"additionalDefinition": [],
"updateServiceName": "",
"supportedTypes": {
"data": [
{
"itemListsData": [
{
"selectionGroupIds": [
"PART"
],
"objectType": "PTC.ProdMgmt.Part"
},
{
"selectionGroupIds": [
"CAD"
],
"objectType": "PTC.CADDocumentMgmt.CADDocument"
}
],
"adapter": {
"instanceName": "windchill",
"thingName": "PTC.WCAdapter"
}
}
],
"allowSubsetForTailoring": true
},
"addServiceName": ""
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.PatternSelector"
},
"mandatory": true,
"key": "primaryTitle"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"additionalDefinition": [],
"updateServiceName": "",
"supportedTypes": {
"data": [
{
"itemListsData": [
{
"selectionGroupIds": [
"PART"
],
"objectType": "PTC.ProdMgmt.Part"
},
{
"selectionGroupIds": [
"CAD"
],
"objectType": "PTC.CADDocumentMgmt.CADDocument"
}
],
"adapter": {
"instanceName": "windchill",
"thingName": "PTC.WCAdapter"
}
}
],
"allowSubsetForTailoring": true
},
"addServiceName": ""
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.PatternSelector"
},
"mandatory": true,
"key": "secondaryTitle"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"additionalDefinition": [],
"updateServiceName": "",
"minimumSelectedAttributes": null,
"supportedTypes": {
"data": [
{
"itemListsData": [
{
"selectionGroupIds": [
"PART"
],
"objectType": "PTC.ProdMgmt.Part"
},
{
"selectionGroupIds": [
"CAD"
],
"objectType": "PTC.CADDocumentMgmt.CADDocument"
}
],
"adapter": {
"instanceName": "windchill",
"thingName": "PTC.WCAdapter"
}
}
],
"allowSubsetForTailoring": true
},
"addServiceName": "",
"maximumSelectedAttributes": "5"
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.AttributesSelector"
},
"mandatory": false,
"key": "attributes"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"directDefinition": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Textbox"
},
"mandatory": false,
"key": "actionBarConfigurationJSON"
}
]
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.DefinitionGroup"
},
"mandatory": false,
"key": "actionBarConfiguration"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": false,
"true": {
"additionalDefinition": [
{
"directDefinition": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Textbox"
},
"mandatory": false,
"key": "defaultImagePath"
}
],
"key": "itemIdentityShowImageDefinition"
}
],
"label": "[[PTC.Nav.Yes]]"
},
"false": {
"additionalDefinition": [],
"label": "[[PTC.Nav.No]]"
},
"label": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Toggle"
},
"mandatory": false,
"key": "showImage"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": false,
"true": {
"additionalDefinition": [],
"label": "[[PTC.Nav.Yes]]"
},
"false": {
"additionalDefinition": [],
"label": "[[PTC.Nav.No]]"
},
"label": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Toggle"
},
"mandatory": false,
"key": "showSecondaryIcon"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": true,
"true": {
"additionalDefinition": [],
"label": "[[PTC.Nav.Yes]]"
},
"false": {
"additionalDefinition": [],
"label": "[[PTC.Nav.No]]"
},
"label": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Toggle"
},
"mandatory": true,
"key": "enableExpandCollapse"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": true,
"true": {
"additionalDefinition": [],
"label": "[[PTC.Nav.Yes]]"
},
"false": {
"additionalDefinition": [],
"label": "[[PTC.Nav.No]]"
},
"label": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Toggle"
},
"mandatory": true,
"key": "expanded"
}
]
}
