绘图
“绘图”是项列表组件的预定义配置，用于显示部件和 CAD 文档的 CAD 绘图列表。与项列表类似，“绘图”具有搜索、排序、筛选和恢复默认值等功能。对于每个绘图，“绘图”都会显示可通过配置进行选取的属性。默认属性为“名称”、“格式”、“版本”和“上次修改时间”，其中“名称”和“格式”是绘图的自定义属性。“名称”包含用于下载绘图的链接，而“格式”则包含可供下载的其他格式的下拉菜单。

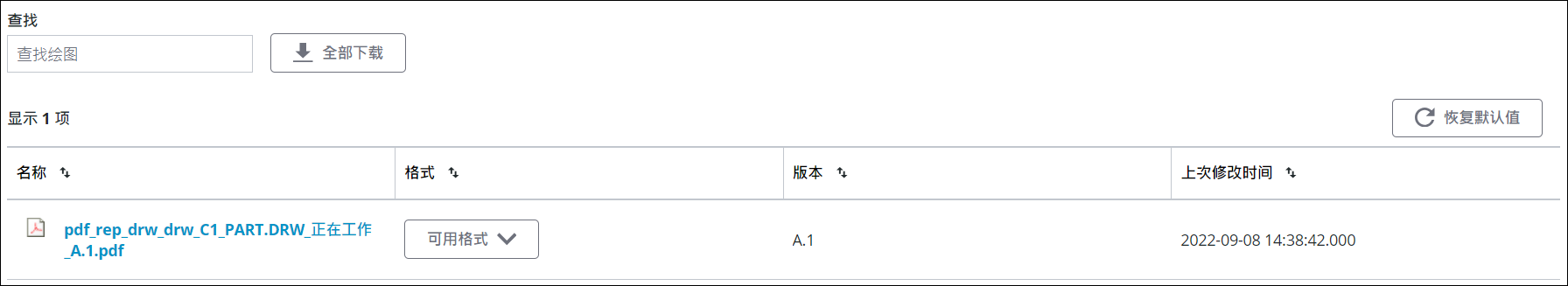

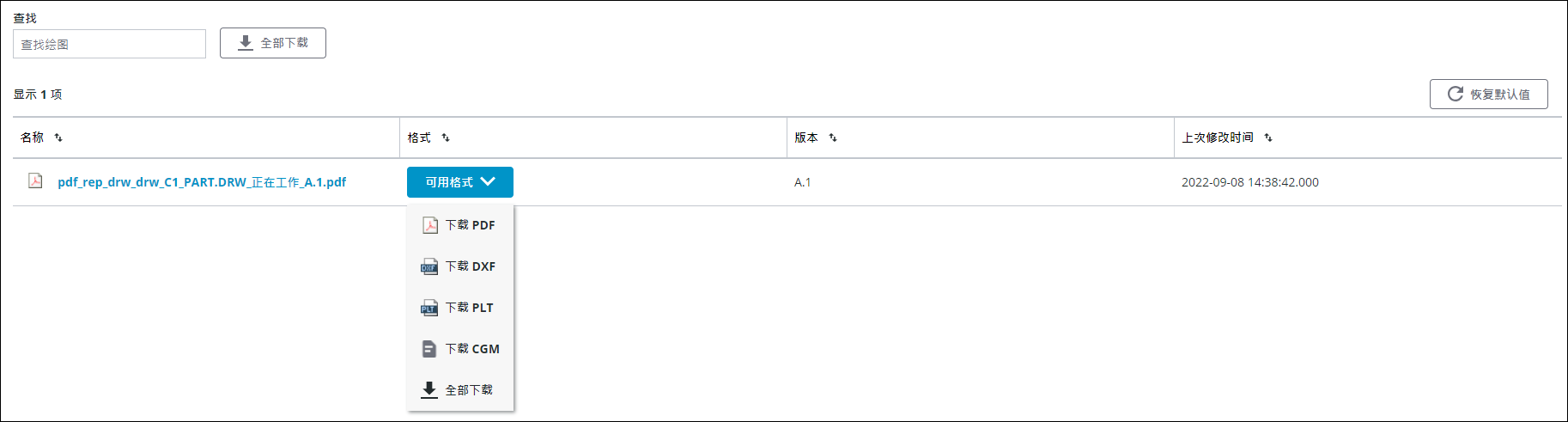

下面的两个示例图示为“绘图”预定义配置：
绑定特性
有关绑定“绘图”的信息，请参阅项列表组件。
 | • 对于“绘图”，输入绑定特性支持 PTC.CADDocumentMgmt.CADDocument 和 PTC.ProdMgmt.Part 对象类型。 • selectedItems 绑定特性的输出中包含对象类型为 PTC.CADDocumentMgmt.CADDocument 的项。 |
配置特性
有关“绘图”的所有可用配置特性的列表，请参阅项列表组件的配置特性表。下表提供了“绘图”的相关配置特性的其他信息。
有关详情，请参阅组件配置结构。
有关子特性的详情，请参阅子特性和容器键。
特性名称 | 说明 | 特性类型 | 默认值 | 必需或可选 | |||
|---|---|---|---|---|---|---|---|
drawingOptions | 用于控制：检索文件的类型。选项： • allFiles - 检索部件或 CAD 文档的所有绘图文件。 • lastModifiedFileOnly - 仅检索部件或 CAD 文档的最新修改的绘图文件。 此配置特性位于组件配置中 implementationConfiguration 特性的下方。 | allFiles | 必需 | ||||
drawingFormats | 用于控制：“格式”列的下拉菜单中检索和显示的文件格式。选项： • specifiedFormatsOnly - 仅检索指定的文件格式；使用 specifiedFormatsDefinition 特性可指定要包括的文件格式。文件格式在下拉菜单中的显示顺序与 specifiedFormatsDefinition 特性中的顺序相同。 • allAvailableFormats - 检索所有可用的文件格式。如果绘图具有 PDF 格式，则“名称”列包含用于下载 PDF 的链接，而且 PDF 是下拉菜单中的第一个格式。
此配置特性位于组件配置中 implementationConfiguration 特性的下方。 | specifiedFormatsOnly | 必需 | ||||
specifiedFormatsDefinition | 要检索的指定格式的列表。格式之间以空格分隔。此处列出的格式顺序指定了“格式”列的下拉菜单中的格式显示顺序。 这是 getDrawingFormats 的子特性，仅当 getDrawingFormats 设置为 specifiedFormatsOnly 时，此子特性才相关。其容器键为 implementationConfiguration。 | PDF DXF PLT CGM | 必需 | ||||
attributes | 有关详情，请参阅项列表。 接受 PTC.CADDocumentMgmt.CADDocument 对象类型的属性。 此外，还接受具有 PTC.CADDocumentMgmt.CADDocument.Custom.Implementation 对象类型的 Name 和 Formats 属性。 | 不适用 | 必需 | ||||
defaultSortField | 有关详情，请参阅项列表。 接受 PTC.CADDocumentMgmt.CADDocument 和 PTC.CADDocumentMgmt.CADDocument.Custom.Implementation 对象类型的属性。 | 不适用 | 可选 | ||||
showImplementationActions | 当此特性包含 downloadZip 键时，“绘图”会在嵌入式操作栏中包括“全部下载”按钮，以供用户下载所有绘图。 downloadZip 是“绘图”针对此特性支持的唯一值。 | 不适用 | 可选 | ||||
配置示例
{
