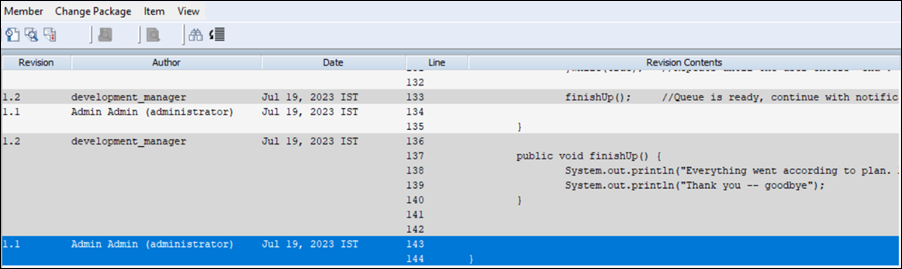

Annotated Revision View
In the GUI, select > > , or in the Web, select > . The Annotated Revision view displays.
In the Web interface, the revision information for the specified revision displays in the bottom frame.
Select View to perform the following tasks:
• Find searches for the first instance of a text string in the revision contents column and highlights the text.
◦ Find Next applies the last search to the remaining revision contents column and highlights the next instance the text displays.
◦ Find Previous applies the last search for the text string to the revision contents column in reverse order.
◦ Character Encoding changes the character encoding used to display the revision contents.
Go to Line displays a specific line of text. To go to a specific line, enter the number for the line, for example, 33. The line of code displays in the center of the pane if it exists in a scrolling region.
The Annotated Revision view display the following information:
|
Column
|
Description
|
|---|---|
|
Revision
|
Revision number for each annotated block. If the revision is pending, then pending displays in parentheses.
|
|
Author
|
Author of the revision.
|
|
Date
|
Date each revision was created.
|
|
Line
|
Line number for each line of text in the revision.
|
|
Revision Contents
|
Text contained in each annotation block.
|
|
C.P. ID (not displayed by default)
|
Change package ID for the annotation block.
|
|
Label (not displayed by default)
|
Label for the annotation block.
|
