設計檔案
「設計檔案」是「項目清單」元件的預先定義組態，可顯示「零件」與 CAD 文件的設計檔案清單，其中包含描述者文件、參考者文件、附件與表示。「設計檔案」與「項目清單」具有類似的搜尋、排序、篩選及還原預設值功能。針對每個檔案，「設計檔案」都會顯示您可以透過組態選擇的屬性。預設屬性是「名稱」與「格式」，且其為自訂屬性。名稱包含可下載檔案的連結，而格式則包含具有其他所有可用下載格式且僅與表示相關的下拉選單。

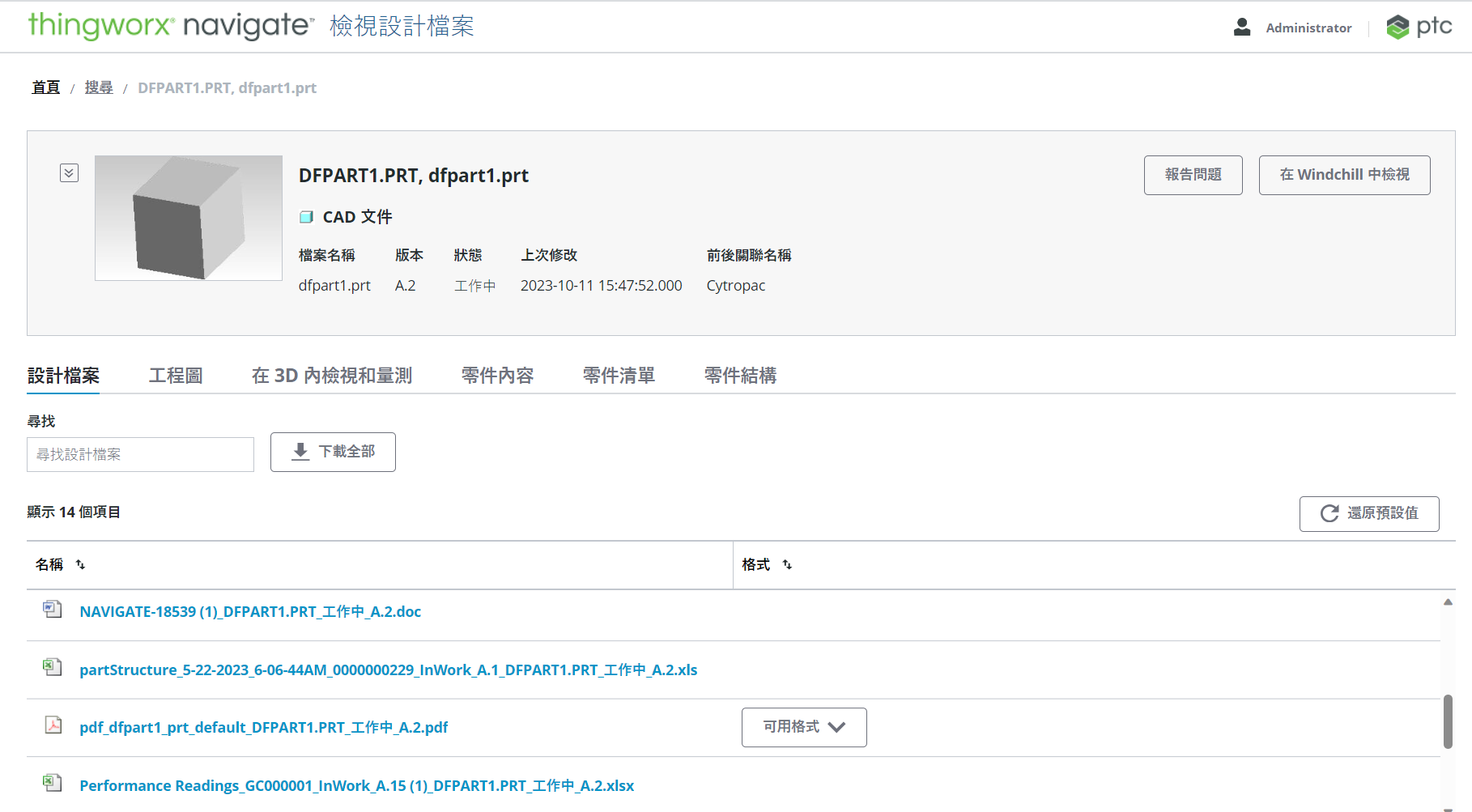

以下是顯示設計檔案預先定義組態的範例圖像：
繫結內容
如需有關繫結「設計檔案」的資訊，請參閱項目清單元件。
 | • 針對「設計檔案」，輸入繫結內容支援 PTC.CADDocumentMgmt.CADDocument 與 PTC.ProdMgmt.Part 物件類型。 • selectedItems 繫結內容的輸出包含具有 PTC.ContentItem 與 PTC.VisualizationRepresentation 物件類型的項目。 |
組態內容
如需「設計檔案」之所有可用組態內容的清單，請參閱項目清單元件的「組態內容」表。下表提供組態內容相關「設計檔案」的其他特定資訊。
如需有關組態結構的詳細資訊，請參閱元件組態結構。
如需有關子內容的詳細資訊，請參閱子內容與容器金鑰。
內容名稱 | 描述 | 內容類型 | 預設值 | 必要或選用 | |||
|---|---|---|---|---|---|---|---|
fileFormatSelection | 決定將擷取並顯示在「格式」欄下拉選單中的表示檔案格式。此子內容僅在將 representations 金鑰包含在 relationships 內容中時才相關。 選項： • specifiedFormats - 僅擷取指定的檔案格式；使用 formats 內容來指定要包括的檔案格式。檔案格式以其在 formats 內容中列出的相同順序顯示在下拉選單中。 • allFormats - 擷取所有可用檔案格式。如果有適用設計檔案的 PDF 格式，「名稱」欄會包含下載 PDF 的連結，且 PDF 將是下拉選單中列出的第一種格式。
此子內容放置在元件組態中的 designFileImplementationDefinition 內容下。 | specifiedFormats | 必要 | ||||
showImplementationActions | 當此內容包括 downloadZip 金鑰時，設計檔案會在內嵌「動作列」中包括全部下載按鈕。這可讓使用者下載所有設計檔案。 downloadZip 是「設計檔案」針對此內容支援的唯一值。 | N/A | 選用 | ||||
formats | 要針對表示擷取之指定格式的清單。格式應以空格分隔。此處列出的格式順序指示這些格式在「格式」欄下拉選單中的顯示順序。 這是 fileFormatSelection 的子內容，且僅在將 fileFormatSelection 設定為 specifiedFormats 時相關。 | PDF DXF PLT CGM | 必要 | ||||
relationships | 要根據與零件或 CAD 文件之間的關係顯示之設計檔案類型的清單。可包含下列一或多個金鑰： • describedByDocuments 可顯示描述者文件 • referenceDocuments 可顯示參考者文件 • attachments 可顯示附件 • representations 可顯示表示
| N/A | 必要 | ||||
attributes | 如需詳細資訊，請參閱項目清單。 接受 PTC.ContentItem 與 PTC.VisualizationRepresentation 物件類型的屬性。 此外，也接受分別擁有 PTC.Nav.DesignFiles.Custom.Implementation 與 PTC.Visualization.Representation.Custom.Implementation 物件類型的 Name 與 Formats 屬性。 | N/A | 必要 | ||||
defaultSortField | 如需詳細資訊，請參閱項目清單。 接受 PTC.ContentItem 與 PTC.VisualizationRepresentation 物件類型的屬性。 此外，也接受分別擁有 PTC.Nav.DesignFiles.Custom.Implementation 與 PTC.Visualization.Representation.Custom.Implementation 物件類型的 Name 與 Formats 屬性。 | N/A | 選用 | ||||
範例組態
{
"showImplementationActions":{
"selected":[
{
"key":"downloadZip"
}
]
},
"selectionType":{
"selectedKey":"none"
},
"waitForInput":{
"value":true
},
"implementationConfiguration":{
"inTailoring":true,
"value":{
"relationships":{
"selected":[
{
"key":"describedByDocuments"
},
{
"key":"referenceDocuments"
},
{
"key":"attachments"
},
{
"key":"representations",
"additionalData":{
"designFileImplementationDefinition":{
"value":{
"fileFormatSelection":{
"selectedKey":"specifiedFormats",
"additionalData":{
"formatsDefinition":{
"formats":{
"value":"PDF DXF PLT CGM"
}
}
}
},
"fileSelection":{
"selectedKey":"defaultFile"
}
}
}
}
}
]
}
}
},
"baseConfigurationVersion":{
"value":"nav.3"
},
"implementationConfigurationVersion":{
"value":"nav.1"
},
"defaultSortFields":{
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"additionalData":{
"itemListDefaultSortFieldDefinition":{
"defaultSortDirection":{
"selectedKey":"asc"
}
}
},
"id":"Name"
}
],
"objectType":"PTC.Nav.DesignFiles.Custom.Implementation"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
}
},
"attributes":{
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"id":"Name",
"ordinal":0
}
],
"objectType":"PTC.Nav.DesignFiles.Custom.Implementation"
},
{
"items":[
{
"id":"Formats",
"ordinal":1
}
],
"objectType":"PTC.Visualization.Representation.Custom.Implementation"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
}
},
"label":{
"value":""
},
"showExportAction":{
"value":false
},
"enableSearch":{
"additionalData":{
"itemListSearchDefinition":{
"searchHintText":{
"value":"[[PTC.Nav.DesignFiles.FindDesignLabel]]"
}
}
},
"value":true
}
}
"showImplementationActions":{
"selected":[
{
"key":"downloadZip"
}
]
},
"selectionType":{
"selectedKey":"none"
},
"waitForInput":{
"value":true
},
"implementationConfiguration":{
"inTailoring":true,
"value":{
"relationships":{
"selected":[
{
"key":"describedByDocuments"
},
{
"key":"referenceDocuments"
},
{
"key":"attachments"
},
{
"key":"representations",
"additionalData":{
"designFileImplementationDefinition":{
"value":{
"fileFormatSelection":{
"selectedKey":"specifiedFormats",
"additionalData":{
"formatsDefinition":{
"formats":{
"value":"PDF DXF PLT CGM"
}
}
}
},
"fileSelection":{
"selectedKey":"defaultFile"
}
}
}
}
}
]
}
}
},
"baseConfigurationVersion":{
"value":"nav.3"
},
"implementationConfigurationVersion":{
"value":"nav.1"
},
"defaultSortFields":{
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"additionalData":{
"itemListDefaultSortFieldDefinition":{
"defaultSortDirection":{
"selectedKey":"asc"
}
}
},
"id":"Name"
}
],
"objectType":"PTC.Nav.DesignFiles.Custom.Implementation"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
}
},
"attributes":{
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"id":"Name",
"ordinal":0
}
],
"objectType":"PTC.Nav.DesignFiles.Custom.Implementation"
},
{
"items":[
{
"id":"Formats",
"ordinal":1
}
],
"objectType":"PTC.Visualization.Representation.Custom.Implementation"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
}
},
"label":{
"value":""
},
"showExportAction":{
"value":false
},
"enableSearch":{
"additionalData":{
"itemListSearchDefinition":{
"searchHintText":{
"value":"[[PTC.Nav.DesignFiles.FindDesignLabel]]"
}
}
},
"value":true
}
}
