文档结构
“文档结构”是项列表组件的预定义配置。文档结构包含一个结构树，可显示文档及其子代之间的层级关系。对于树中的每个项，文档结构均会显示可通过配置进行选择的属性。默认属性为编号、名称和状态。
可以配置文档结构以设置树的初始展开层级。默认情况下，初始展开层级设置为 3。用户可以展开和折叠树中的元素。
文档结构树的最左侧列中包含缩进，以便直观显示结构层级。默认情况下，表格中的第一列为“编号”。对于除“编号”以外的所有列，可以通过配置来定义列顺序。
文档结构不支持导出树数据。

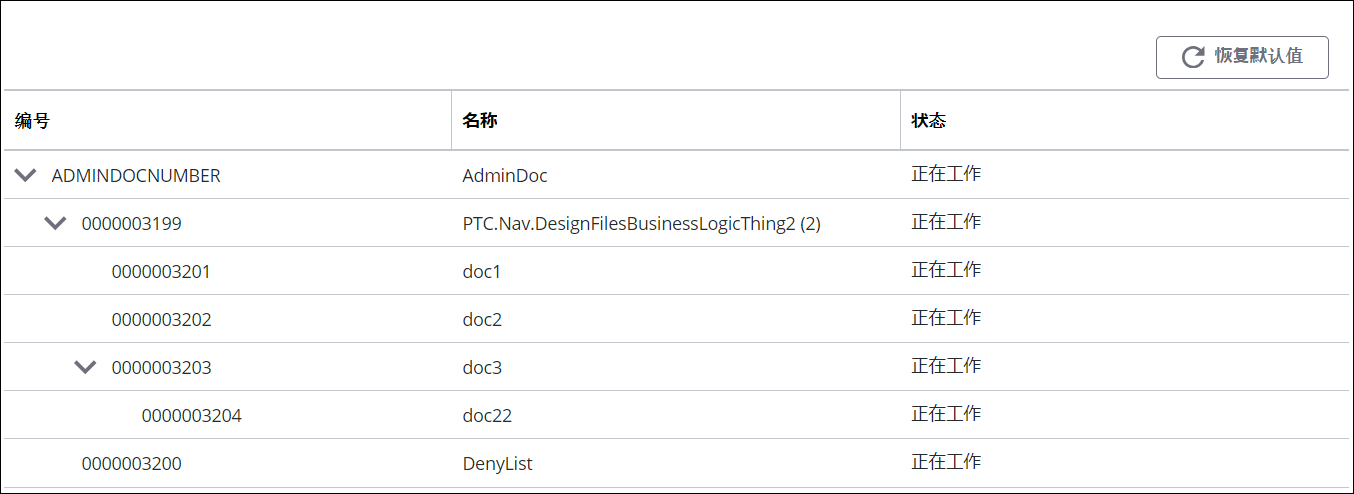

下面的示例图示为“文档结构”预定义配置：
 | 如果查看结构树的用户对结构中的某一项没有访问权限，则该项不显示，并显示以下消息：“一些项已隐藏，因为您没有权限访问它们”。 |
绑定特性
有关绑定文档结构的信息，请参阅项列表组件。
| | 对于“文档结构”，输入绑定特性支持 PTC.DocMgmt.Document 对象类型。 selectedItems 绑定特性的输出中包含对象类型为 PTC.DocMgmt.DocStructure 的项。 |
配置特性
有关“文档结构”的所有可用配置特性的列表，请参阅项列表组件的配置特性表。下表提供了“文档结构”的相关配置特性的其他信息。
有关详情，请参阅组件配置结构。
有关子特性的详情，请参阅子特性和容器键。
特性名称 | 说明 | 特性类型 | 默认值 | 必需或可选 | |
|---|---|---|---|---|---|
attributes | 有关详情，请参阅项列表。 接受 PTC.DocMgmt.DocStructure 对象类型的属性。 此外，还接受具有 PTC.DocMgmt.DocStructure:PTC.Visualization.Representation.Custom.Adapter 对象类型的 DefaultPDFRepresentation 属性。当 DefaultPDFRepresentation 属性包含在配置中时，文档结构树中将包括“表示”列。“表示”列包含一个链接，用于查看具有可用“表示”列的每个文档的表示。 默认情况下，文档结构树按第一个属性 (即具有最小非负顺序值的属性) 进行排序。 | 不适用 | 必需 | ||
配置示例
{
"attributes":{
"inTailoring":true,
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"id":"DefaultPDFRepresentation",
"ordinal":3
}
],
"objectType":"PTC.DocMgmt.DocStructure:PTC.Visualization.Representation.Custom.Adapter"
},
{
"items":[
{
"id":"Document|Number",
"ordinal":0
},
{
"id":"Document|Name",
"ordinal":1
},
{
"id":"Document|State#Display",
"ordinal":2
}
],
"objectType":"PTC.DocMgmt.DocStructure"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
}
},
"defaultExpansionLevel":{
"selectedKey":[
"3"
]
},
"enableSearch":{
"value":false
},
"label":{
"value":""
},
"selectionType":{
"selectedKey":"single"
},
"showExportAction":{
"value":false
},
"waitForInput":{
"value":true
},
"baseConfigurationVersion":{
"value":"nav.3"
},
"implementationConfigurationVersion":{
"value":"nav.1"
}
}
"attributes":{
"inTailoring":true,
"selectedValues":{
"data":[
{
"itemListsData":[
{
"items":[
{
"id":"DefaultPDFRepresentation",
"ordinal":3
}
],
"objectType":"PTC.DocMgmt.DocStructure:PTC.Visualization.Representation.Custom.Adapter"
},
{
"items":[
{
"id":"Document|Number",
"ordinal":0
},
{
"id":"Document|Name",
"ordinal":1
},
{
"id":"Document|State#Display",
"ordinal":2
}
],
"objectType":"PTC.DocMgmt.DocStructure"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
]
}
},
"defaultExpansionLevel":{
"selectedKey":[
"3"
]
},
"enableSearch":{
"value":false
},
"label":{
"value":""
},
"selectionType":{
"selectedKey":"single"
},
"showExportAction":{
"value":false
},
"waitForInput":{
"value":true
},
"baseConfigurationVersion":{
"value":"nav.3"
},
"implementationConfigurationVersion":{
"value":"nav.1"
}
}
自定义服务
除配置外，每个组件还支持通过扩展其业务逻辑来自定义组件。每个组件的业务逻辑在事物模板中都包含可改写服务，您可以对这些服务进行扩展和改写。下表对此组件的可改写服务进行了详细说明。
有关每个服务的返回值和参数的示例，请参阅自定义服务的输入/输出示例。
名称 | 说明 |
|---|---|
DefHookAttributesTypesInfo | 返回 JSON 数组，其中包含文档结构支持的适配器信息和属性的对象类型。 参数：无 返回：JSON 数组 |
GetConfigurations | 返回文档结构的可用配置。 参数：无 返回：JSON |
GetImplementationSettings | 返回“文档结构”实施的设置数据。实施可通过改写此服务来提供其自己的设置。有关详情，请参阅有关项列表的 GetImplementationSettings 服务的其他信息 主题。 参数：无 返回：JSON 对象 |
GetItems | 返回在输入中指定的文档的结构。 参数： input (必需) - CCO 格式的 JSON，其中包含要从后端系统获取的数据的输入 ID，以及后端系统的适配器信息。 configuration (必需) - JSON，其中包含从“定制管理器”资源获得的最终合并配置。 返回：CCO 格式的 JSON |
MapItemToInputObject | 将文档结构项映射到文档输入，随后此输入可供 GetItems 服务使用。 参数： input (可选) - CCO 格式的 JSON，其中包含位于结构根节点处的文档输入 ID。 item (必填) - 包含要映射的文档的 JSON。 |
实施定义
{
"array": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"directDefinition": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Textbox"
},
"mandatory": false,
"key": "actionBarConfigurationJSON"
}
]
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.DefinitionGroup"
},
"mandatory": false,
"key": "actionBarConfiguration"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"additionalDefinition": [
{
"directDefinition": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Textbox"
},
"mandatory": false,
"key": "fieldTitleOverride"
}
],
"key": "itemListAttributesDefinition"
},
{
"directDefinition": [],
"key": "implementationAttributesDefinition"
}
],
"updateServiceName": "",
"minimumSelectedAttributes": null,
"supportedTypes": {
"data": [
{
"itemListsData": [
{
"selectionGroupIds": [
"PSI"
],
"objectType": "PTC.DocMgmt.DocStructure"
}
],
"adapter": {
"instanceName": "windchill",
"thingName": "PTC.WCAdapter"
}
}
],
"allowSubsetForTailoring": false
},
"addServiceName": "",
"maximumSelectedAttributes": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.AttributesSelector"
},
"mandatory": true,
"key": "attributes"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"options": [
{
"label": "1",
"key": "1"
},
{
"label": "2",
"key": "2"
},
{
"label": "3",
"key": "3"
},
{
"label": "4",
"key": "4"
},
{
"label": "5",
"key": "5"
},
{
"label": "6",
"key": "6"
},
{
"label": "7",
"key": "7"
},
{
"label": "8",
"key": "8"
},
{
"label": "9",
"key": "9"
},
{
"label": "-1",
"key": "-1"
}
],
"updateServiceName": null,
"addServiceName": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Dropdown"
},
"mandatory": false,
"key": "defaultExpansionLevel"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"additionalDefinition": [
{
"directDefinition": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"options": [
{
"description": "Sort column in ascending order",
"label": "[[PTC.Nav.ItemList.SortOrder.Asc]]",
"key": "asc"
},
{
"description": "Sort column in descending order",
"label": "[[PTC.Nav.ItemList.SortOrder.Dsc]]",
"key": "dsc"
}
],
"updateServiceName": null,
"addServiceName": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.RadioButton"
},
"mandatory": false,
"key": "defaultSortDirection"
}
],
"key": "itemListDefaultSortFieldDefinition"
}
],
"updateServiceName": "",
"minimumSelectedAttributes": null,
"supportedTypes": {
"data": [
{
"itemListsData": [
{
"selectionGroupIds": [
"PSI"
],
"objectType": "PTC.DocMgmt.DocStructure"
}
],
"adapter": {
"instanceName": "windchill",
"thingName": "PTC.WCAdapter"
}
}
],
"allowSubsetForTailoring": false
},
"addServiceName": "",
"maximumSelectedAttributes": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.AttributesSelector"
},
"mandatory": false,
"key": "defaultSortFields"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": true,
"true": {
"additionalDefinition": [
{
"directDefinition": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Textbox"
},
"mandatory": false,
"key": "searchHintText"
}
],
"key": "itemListSearchDefinition"
}
],
"label": "[[PTC.Nav.Yes]]"
},
"false": {
"additionalDefinition": [],
"label": "[[PTC.Nav.No]]"
}
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Toggle"
},
"mandatory": false,
"key": "enableSearch"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"additionalDefinition": [
{
"directDefinition": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"dynamicallySetTypeServiceName": "GetFilterTypeDefinitionForFilterField",
"type": {
"enum": {
"options": [],
"updateServiceName": null,
"dynamicallySetOptionsServiceName": null,
"addServiceName": null,
"multiSelect": null
}
}
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.FieldFilter"
},
"mandatory": false,
"key": "defaultSelectedFilterValues"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Textbox"
},
"mandatory": false,
"key": "filterLabelOverride"
}
],
"key": "itemListFilterFieldDefinition"
}
],
"updateServiceName": "",
"minimumSelectedAttributes": 0,
"supportedTypes": {
"data": [
{
"itemListsData": [
{
"selectionGroupIds": [
"PSI"
],
"objectType": "PTC.DocMgmt.DocStructure"
}
],
"adapter": {
"instanceName": "windchill",
"thingName": "PTC.WCAdapter"
}
}
],
"allowSubsetForTailoring": false
},
"addServiceName": "",
"maximumSelectedAttributes": 1
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.AttributesSelector"
},
"mandatory": false,
"key": "filterFields"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.DefinitionGroup"
},
"mandatory": false,
"key": "implementationConfiguration"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Textbox"
},
"mandatory": false,
"key": "label"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"minValue": 50,
"default": 500,
"maxValue": 10000,
"step": 50
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Number"
},
"mandatory": false,
"key": "maxNumberOfRowsInGrid"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"options": [
{
"description": "Disallow items selection",
"label": "[[PTC.Nav.ItemList.SelectionType.None]]",
"key": "none"
},
{
"description": "Allow single item selection",
"label": "[[PTC.Nav.ItemList.SelectionType.Single]]",
"key": "single"
},
{
"description": "Allow multiple items selection",
"label": "[[PTC.Nav.ItemList.SelectionType.Multiple]]",
"key": "multi"
}
],
"updateServiceName": null,
"addServiceName": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.RadioButton"
},
"mandatory": false,
"key": "selectionType"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": true,
"true": {
"additionalDefinition": [
{
"directDefinition": [
{
"property": {
"options": [
[
{
"label": "[[PTC.Nav.ItemList.ExportCSVActionLabel]]",
"key": "exportToCsv"
},
{
"label": "[[PTC.Nav.ItemList.ExportCSVAsExcelActionLabel]]",
"key": "exportToExcel"
}
]
]
},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": "",
"overflow": null,
"minimumSelectedItems": null,
"options": [],
"updateServiceName": null,
"addServiceName": null,
"constraints": {}
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.CheckboxArray"
},
"mandatory": false,
"key": "exportTypes"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": false,
"true": {
"additionalDefinition": [],
"label": null
},
"false": {
"additionalDefinition": [],
"label": null
}
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Toggle"
},
"mandatory": false,
"key": "exportUnFilteredData"
}
],
"key": "itemListExportDefinition"
}
],
"label": "[[PTC.Nav.Yes]]"
},
"false": {
"additionalDefinition": [],
"label": "[[PTC.Nav.No]]"
}
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Toggle"
},
"mandatory": false,
"key": "showExportAction"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": "alphanumeric",
"options": [
{
"description": "Alphanumeric sort order",
"label": "[[PTC.Nav.ItemList.SortOrder.Alphanumeric]]",
"key": "alphanumeric"
},
{
"description": "Natural sort order",
"label": "[[PTC.Nav.ItemList.SortOrder.Natural]]",
"key": "natural"
}
],
"updateServiceName": null,
"addServiceName": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.RadioButton"
},
"mandatory": false,
"key": "sortOrder"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": false,
"true": {
"additionalDefinition": [],
"label": "[[PTC.Nav.Yes]]"
},
"false": {
"additionalDefinition": [],
"label": "[[PTC.Nav.No]]"
}
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Toggle"
},
"mandatory": false,
"key": "waitForInput"
}
]
}
"array": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"directDefinition": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Textbox"
},
"mandatory": false,
"key": "actionBarConfigurationJSON"
}
]
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.DefinitionGroup"
},
"mandatory": false,
"key": "actionBarConfiguration"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"additionalDefinition": [
{
"directDefinition": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Textbox"
},
"mandatory": false,
"key": "fieldTitleOverride"
}
],
"key": "itemListAttributesDefinition"
},
{
"directDefinition": [],
"key": "implementationAttributesDefinition"
}
],
"updateServiceName": "",
"minimumSelectedAttributes": null,
"supportedTypes": {
"data": [
{
"itemListsData": [
{
"selectionGroupIds": [
"PSI"
],
"objectType": "PTC.DocMgmt.DocStructure"
}
],
"adapter": {
"instanceName": "windchill",
"thingName": "PTC.WCAdapter"
}
}
],
"allowSubsetForTailoring": false
},
"addServiceName": "",
"maximumSelectedAttributes": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.AttributesSelector"
},
"mandatory": true,
"key": "attributes"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"options": [
{
"label": "1",
"key": "1"
},
{
"label": "2",
"key": "2"
},
{
"label": "3",
"key": "3"
},
{
"label": "4",
"key": "4"
},
{
"label": "5",
"key": "5"
},
{
"label": "6",
"key": "6"
},
{
"label": "7",
"key": "7"
},
{
"label": "8",
"key": "8"
},
{
"label": "9",
"key": "9"
},
{
"label": "-1",
"key": "-1"
}
],
"updateServiceName": null,
"addServiceName": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Dropdown"
},
"mandatory": false,
"key": "defaultExpansionLevel"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"additionalDefinition": [
{
"directDefinition": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"options": [
{
"description": "Sort column in ascending order",
"label": "[[PTC.Nav.ItemList.SortOrder.Asc]]",
"key": "asc"
},
{
"description": "Sort column in descending order",
"label": "[[PTC.Nav.ItemList.SortOrder.Dsc]]",
"key": "dsc"
}
],
"updateServiceName": null,
"addServiceName": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.RadioButton"
},
"mandatory": false,
"key": "defaultSortDirection"
}
],
"key": "itemListDefaultSortFieldDefinition"
}
],
"updateServiceName": "",
"minimumSelectedAttributes": null,
"supportedTypes": {
"data": [
{
"itemListsData": [
{
"selectionGroupIds": [
"PSI"
],
"objectType": "PTC.DocMgmt.DocStructure"
}
],
"adapter": {
"instanceName": "windchill",
"thingName": "PTC.WCAdapter"
}
}
],
"allowSubsetForTailoring": false
},
"addServiceName": "",
"maximumSelectedAttributes": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.AttributesSelector"
},
"mandatory": false,
"key": "defaultSortFields"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": true,
"true": {
"additionalDefinition": [
{
"directDefinition": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Textbox"
},
"mandatory": false,
"key": "searchHintText"
}
],
"key": "itemListSearchDefinition"
}
],
"label": "[[PTC.Nav.Yes]]"
},
"false": {
"additionalDefinition": [],
"label": "[[PTC.Nav.No]]"
}
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Toggle"
},
"mandatory": false,
"key": "enableSearch"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"additionalDefinition": [
{
"directDefinition": [
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"dynamicallySetTypeServiceName": "GetFilterTypeDefinitionForFilterField",
"type": {
"enum": {
"options": [],
"updateServiceName": null,
"dynamicallySetOptionsServiceName": null,
"addServiceName": null,
"multiSelect": null
}
}
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.FieldFilter"
},
"mandatory": false,
"key": "defaultSelectedFilterValues"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Textbox"
},
"mandatory": false,
"key": "filterLabelOverride"
}
],
"key": "itemListFilterFieldDefinition"
}
],
"updateServiceName": "",
"minimumSelectedAttributes": 0,
"supportedTypes": {
"data": [
{
"itemListsData": [
{
"selectionGroupIds": [
"PSI"
],
"objectType": "PTC.DocMgmt.DocStructure"
}
],
"adapter": {
"instanceName": "windchill",
"thingName": "PTC.WCAdapter"
}
}
],
"allowSubsetForTailoring": false
},
"addServiceName": "",
"maximumSelectedAttributes": 1
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.AttributesSelector"
},
"mandatory": false,
"key": "filterFields"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.DefinitionGroup"
},
"mandatory": false,
"key": "implementationConfiguration"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Textbox"
},
"mandatory": false,
"key": "label"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"minValue": 50,
"default": 500,
"maxValue": 10000,
"step": 50
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Number"
},
"mandatory": false,
"key": "maxNumberOfRowsInGrid"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"options": [
{
"description": "Disallow items selection",
"label": "[[PTC.Nav.ItemList.SelectionType.None]]",
"key": "none"
},
{
"description": "Allow single item selection",
"label": "[[PTC.Nav.ItemList.SelectionType.Single]]",
"key": "single"
},
{
"description": "Allow multiple items selection",
"label": "[[PTC.Nav.ItemList.SelectionType.Multiple]]",
"key": "multi"
}
],
"updateServiceName": null,
"addServiceName": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.RadioButton"
},
"mandatory": false,
"key": "selectionType"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": true,
"true": {
"additionalDefinition": [
{
"directDefinition": [
{
"property": {
"options": [
[
{
"label": "[[PTC.Nav.ItemList.ExportCSVActionLabel]]",
"key": "exportToCsv"
},
{
"label": "[[PTC.Nav.ItemList.ExportCSVAsExcelActionLabel]]",
"key": "exportToExcel"
}
]
]
},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": "",
"overflow": null,
"minimumSelectedItems": null,
"options": [],
"updateServiceName": null,
"addServiceName": null,
"constraints": {}
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.CheckboxArray"
},
"mandatory": false,
"key": "exportTypes"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": false,
"true": {
"additionalDefinition": [],
"label": null
},
"false": {
"additionalDefinition": [],
"label": null
}
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Toggle"
},
"mandatory": false,
"key": "exportUnFilteredData"
}
],
"key": "itemListExportDefinition"
}
],
"label": "[[PTC.Nav.Yes]]"
},
"false": {
"additionalDefinition": [],
"label": "[[PTC.Nav.No]]"
}
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Toggle"
},
"mandatory": false,
"key": "showExportAction"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": "alphanumeric",
"options": [
{
"description": "Alphanumeric sort order",
"label": "[[PTC.Nav.ItemList.SortOrder.Alphanumeric]]",
"key": "alphanumeric"
},
{
"description": "Natural sort order",
"label": "[[PTC.Nav.ItemList.SortOrder.Natural]]",
"key": "natural"
}
],
"updateServiceName": null,
"addServiceName": null
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.RadioButton"
},
"mandatory": false,
"key": "sortOrder"
},
{
"property": {},
"value": {
"initializationData": {
"version": "1.0.0",
"constraints": {},
"properties": {
"default": false,
"true": {
"additionalDefinition": [],
"label": "[[PTC.Nav.Yes]]"
},
"false": {
"additionalDefinition": [],
"label": "[[PTC.Nav.No]]"
}
}
},
"elementVersion": "1.0.0",
"elementName": "PTC.Nav.DynamicForm.Toggle"
},
"mandatory": false,
"key": "waitForInput"
}
]
}
