Direct Access of a Remote Model from Modeler
This solution is the simplest way to work across sites, but for a reasonable performance you must have a high-bandwidth low-latency connection between the sites.
Ideally you want a connection that has a latency of less than one 1 millisecond. As the latency of a connection increases from 1 millisecond, the performance and responsiveness of the Modeler client decreases.
 |
You can reduce network traffic by hiding the status bar, toolbars and the Property Pages when not in use.
|

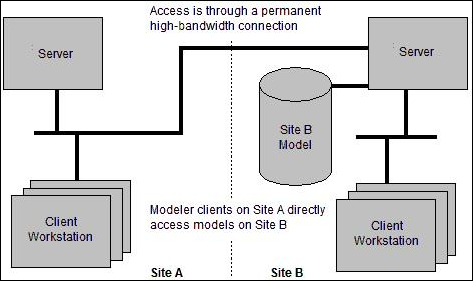

The following diagram illustrates a potential configuration for working across sites in this way.
The following table summarizes the advantages and disadvantages of working across sites in this way:
|
Advantages
|
Disadvantages
|
|---|---|
|
Simple configuration and implementation.
Direct access of the model, so changes are immediately seen by other users of the model.
No administration requirements for transferring information across sites.
|
You require a permanent high-bandwidth, low-latency connection between the sites.
|
