Edge Bend Feature
The Edge Bend feature allows you to round sharp edges of a sheet metal.
The element tree for the Edge Bend feature is documented in the header file ProSmtEdgeBend.h and is shown in the following figure:

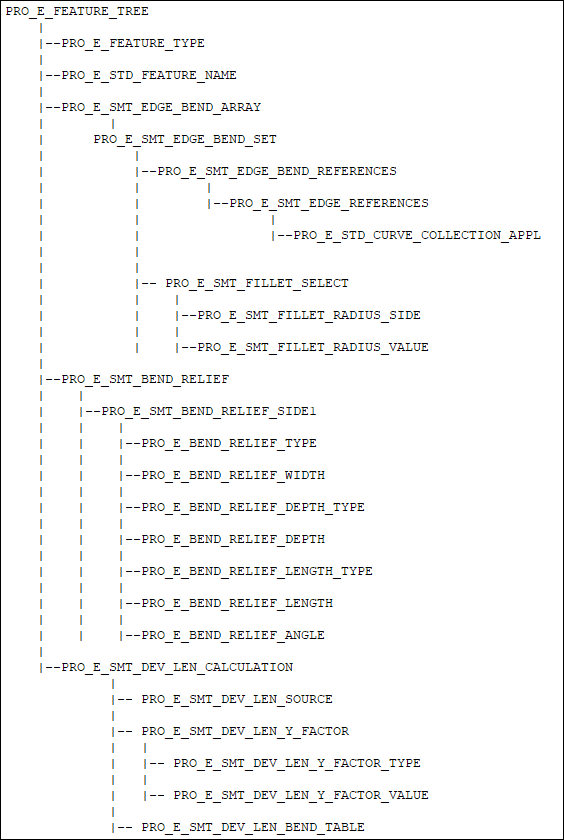

Figure 131. Feature Element Tree for Edge Bend Feature
The elements in this tree are described as follows:
Element ID | Data Type | Description |
|---|---|---|
PRO_E_FEATURE_TYPE | PRO_VALUE_TYPE_INT | Specifies the type of feature. The value of this feature must be PRO_FEAT_EDGE_BEND. |
PRO_E_STD_FEATURE_NAME | PRO_VALUE_TYPE_WSTRING | Specifies the name of the feature. The default value is Edge_Bend_1. |
PRO_E_SMT_EDGE_BEND_ARRAY | Array | An array element of single or multiple Edge Bend sets. |
PRO_E_SMT_EDGE_BEND_SET | Compound | This compound element contains a single edge bend set. |
PRO_E_SMT_EDGE_BEND_REFERENCES | Array | An array element of surface edges, that form an edge bend set. |
PRO_E_SMT_EDGE_REFERENCES | Compound | This compound element defines the collection of surface edge or a curve. |
PRO_E_STD_CURVE_COLLECTION_APPL | PRO_VALUE_TYPE_POINTER | Specifies the sharp edges to be rounded. |
PRO_E_SMT_FILLET_SELECT | Compound | This compound element defines the bend properties and the value of the bend radius. |
PRO_E_SMT_FILLET_RADIUS_SIDE | PRO_VALUE_TYPE_INT | Specifies the fillet side using the enumerated data type ProSmdRadType. The valid values for this element are as follows: • PRO_BEND_RAD_OUTSIDE—Applies the bend radius to the outer surface of the bend. • PRO_BEND_RAD_INSIDE—Applies the bend radius to the inner surface of the bend. • PRO_BEND_RAD_PARAMETER—Applies the bend radius at the dimension location set by the SMT_DFLT_RADIUS_SIDE parameter in . |
PRO_E_SMT_FILLET_RADIUS_VALUE | PRO_VALUE_TYPE_DOUBLE | Specifies the value of the bend radius. |
PRO_E_SMT_BEND_RELIEF | Compound | This compound element defines the bend relief at the edges. Refer to the section Bend Relief Elements for more information. |
PRO_E_SMT_DEV_LEN_CALCULATION | Compound | This compound element defines the method used to calculate the Developed Length dimensions for bends. For more information see the section The Element Subtree for Length Calculation. |
