What's New in Creo Schematics 13.0.0.0 > Data Exchange with Creo Parametric
Data Exchange with Creo Parametric
Creo Schematics 13.0.0.0
User Interface Location: Click File > Export > EDA/PVZ.
Description
Exported EDA files are now a single source for data exchange and visualization. They contain the same logical data as in exported XML files for data exchange with Creo Parametric.

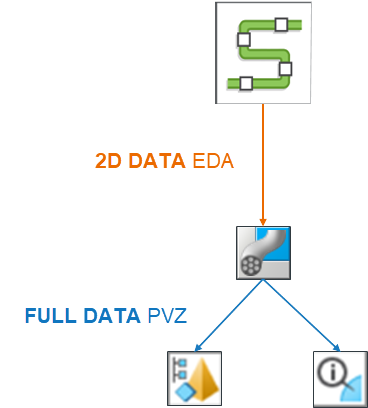

export EDA with full data to Creo Parametric and Creo View
Benefits
• Single-source data exchange eliminates the need for multiple file formats for logical data and visualization.
• Reduces file management overhead and minimizes out-of-synchronization risks between Schematics, Parametric, and downstream tools (PLM, Creo View and Illustrate).
Additional Information
Tips:
None.
Limitations:
No known limitations.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
