Hatch Designer for Creating and Editing Hatch Patterns
A new tool for creating and editing a PAT hatch pattern is now available.
Release: Creo Parametric 9.0.0.0
User Interface Location: In model environment, click > > .
Watch videos that demonstrate this enhancement:
What is the benefit of this enhancement?

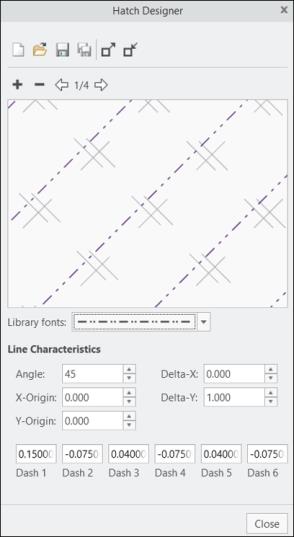

A new hatch designer tool is now available for creating new custom PAT format hatch patterns and for customizing existing PAT patterns. This tool also enables you to retrieve legacy XCH pattern files, convert them to PAT, and edit them as required.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
