Output Variables
The outputs available from the Controller module are:
• Error— This shows the difference between the measured process variable and set point over time.
• Control Variable— This shows the controller output or control variable input variation over time.
To access the list of outputs from the Controller module:
1. In the Post-Processing tab, click
XYPlot.

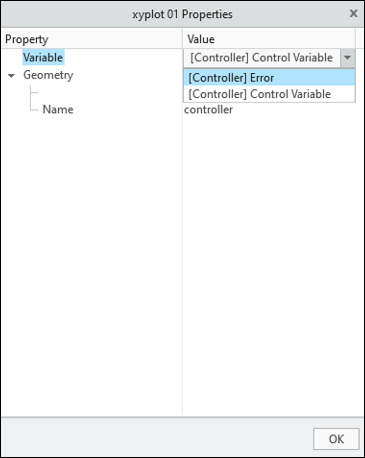

XYPlot.2. Select the Variable as shown in the following figure.
