Style: Connection Symbols Modernized
Creo Parametric 12.4.0.0
User Interface Location: Click Style > Surface Connect.
Description
In Creo Parametric 12, the Style connection symbols were modernized to be more visible, informative, and consistent with the rest of Creo. The symbols depict the connection type.

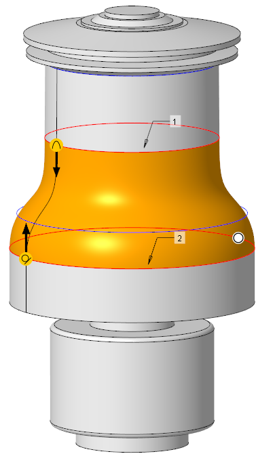

Style connection symbols Model that contains Style connection symbols
Benefits
Easier to interpret connection types for clearer understanding of surface and curve relationships
Additional Information
Tips:
None.
Limitations:
No known limitations.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
