Style: Surface Reparameterization Curve Lock to Endpoint
Creo Parametric 12.4.0.0
User Interface Location: Use either of these methods:
• Click Style > Surface > Reparameterization > Parameterization > Type > Lock to Point.
Parameterization tab
• Style > Surface Reparameterization, right-click a reparameterization curve endpoint, and select Lock to Point.
Reparameterization endpoint shortcut menu
Videos
See the video on the Learning Connector.
Description
In Creo 12, the ability to use the endpoint of a boundary chain as a reference for a reparameterization curve has been added to the Lock to Point option in the Surface tool in Style. Previously, you could only reference a datum point.
Benefits
• No longer need to create datum points to use as reparameterization curve references
• More efficient reparameterization

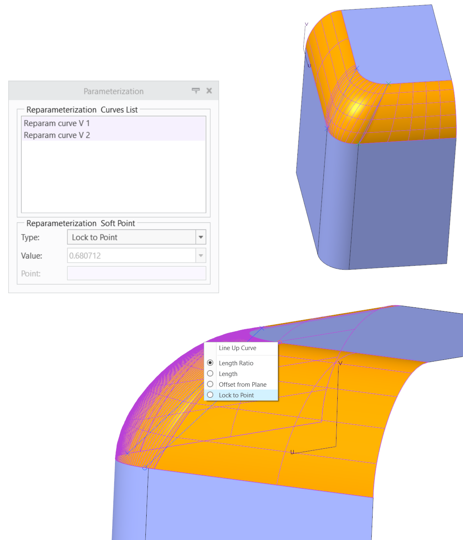

Model showing reparameterization curves
Additional Information
Tips:
None.
Limitations:
No known limitations.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
