GD&T Advisor Enhancement: Support for Combining Orientation and Form Tolerances for Patterns
Creo Parametric 12.4.0.0
User Interface Location: N/A
Videos
Description
Detailing standards allow the combination of orientation and form tolerances for patterns, but this was not supported in GD&T Advisor.

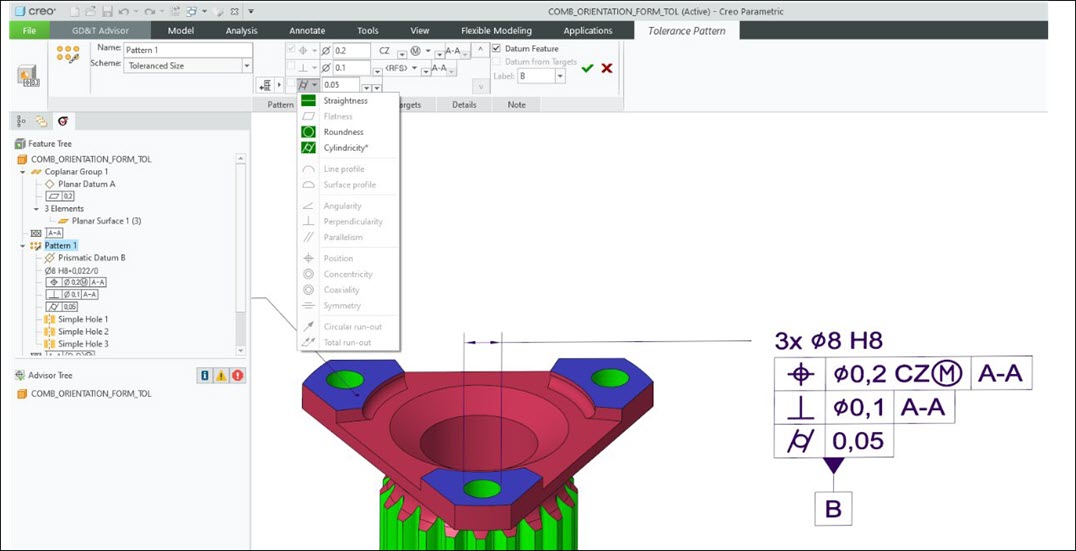

Now GD&T Advisor supports defining a new tolerance combination for patterns. You can define an orientation tolerance along with a form tolerance.
Benefits
This enhancement improves compliance with the ASME and ISO standards.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
