Ability to Define a Tool Offset for the Tool Adapter
Creo Parametric 10.0.0.0
User Interface Location:
1. Click Manufacturing > Cutting Tools. The Tools Setup dialog box opens.
2. Click File > Open Tool Library > By Reference.
3. Select the tool.
4. Click the Settings tab.
Description

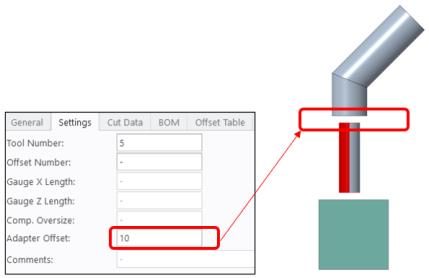

A new tool offset parameter has been introduced to displace the holder position along the tool axis. The Adapter Offset option has been added in the Tools Setup dialog box to support the displacement of the holder position along the tool axis. You can now modify the holder-tool assembly. The associated ADAPTER_OFFSET_FROM_TOOL parameter can be output in the CL file as a PPRINT statement.
Benefits
This enhancement eliminates the need to create multiple assemblies of holders and tools. The addition of the ADAPTER_OFFSET_FROM_TOOL parameter in the CL data makes the code clear to programmers.
Additional Information
Tips:
None.
Limitations:
No known limitations.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
