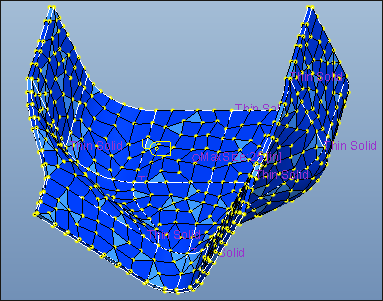

The following figure shows an AutoGEM mesh with a thin solid AutoGEM control. The model is meshed only with brick and wedge elements. The brick elements are in dark blue and the wedge elements are in a lighter shade of blue.
