Welding: Modernized Handles and Visualization Improvements
Creo+
User Interface Location: Click Applications > Welding.
Videos
See the video on the Learning Connector.
Description
In Creo+ Welding, the handles have been modernized, and visualization has been improved for spot welds and other types of surface welds.
• Handles
The handles throughout Welding have been modernized, and have been made consistent with the rest of Creo+. They provide improved usability with arrow indicators.
Creo 11:
Creo 11 handles
Creo 12:
Creo 12 handles
• Visualization
Spot welds have been made easy to see when their Joint Member is activated. This makes spot weld validation easier, as the spot welds are easily visible. Additionally, all types of surface welds are visible when their Joint Member is activated.
Previously, spot welds used wireframe display because they are quilts.
Creo 11:

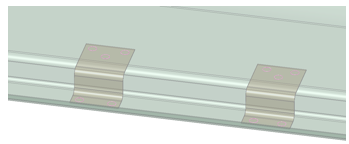

Creo 11 spot welds, hard to see
Creo 12:

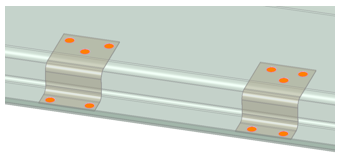

Creo 12 spot welds, easy to see
Benefits
• Consistent handles throughout all of Creo+
• Easier visualization of spot welds and other surface style welds
Additional Information
Tips:
None.
Limitations:
No known limitations.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
