Enhancement: Capture and Reuse Visibility States
Creo+
User Interface Location:
• >
• >
• In-graphics toolbar:
and
.
and .Description

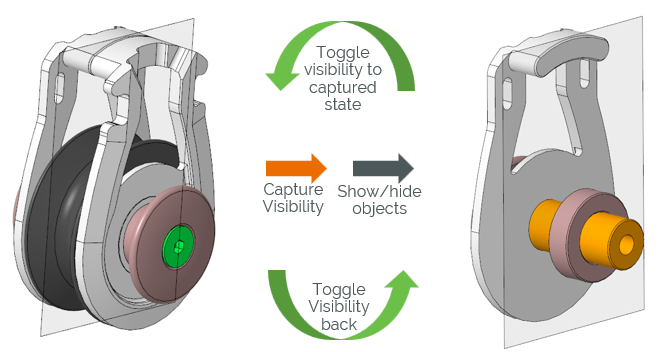

You can now use Capture Visibility to save the current visibility state of objects in your model as a temporary view state for future reference. Later in the design process, you can Toggle Visibility to switch between the current visibility state and the captured view state.
Visibility settings managed by Combination States (MBD, Semi-MBD) are not affected by Toggle Visibility.
Previously, it was difficult to capture a certain visibility state in the part or assembly mode and reuse it without changing the model.
Benefits
Enhanced flexibility in design visualization.
Additional Information
Tips: | None. |
Limitations: | The Capture Visibility and Toggle Visibility commands are not supported for Style, FreeStyle, and Generative Design. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None |
