Style: Smooth Option for N-Sided Surfaces
Creo+
User Interface Location: Click Style > Surface > Options.
Videos
See the video on the Learning Connector.
Description
In Creo+, the Smooth option has been added to the Options tab of the Surface tool. This option makes a surface smoother for surfaces with three or four boundaries when the Use for 3 and 4 boundaries check box is selected, or surfaces with five or more boundaries. Previously the Smooth option was only available using a configuration option.

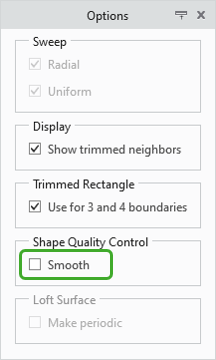

Surface Options tab showing Smooth option
Additionally, the allowed number of knots has been increased.
Benefits
More efficient workflow from easy access to the Smooth option
Additional Information
Tips:
None.
Limitations:
No known limitations.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
