Creo+ Release Notes > May 2025 > Features and Enhancements > Sheetmetal > Support for Fully Dependent Mirror in Sheet Metal
Support for Fully Dependent Mirror in Sheet Metal
Creo+
User Interface Location: Click Sheetmetal > Mirror (Editing menu overflow).
Videos
Description
You can now create a fully dependent mirror with one or multiple selected features. With the fully dependent option, you can create mirror features that propagate all feature settings to the mirrored feature. This includes bend and corner relief settings, corner seam settings, and bend position settings. This enhancement ensures that changes to the source features are fully reflected in the mirrored features during the regeneration.

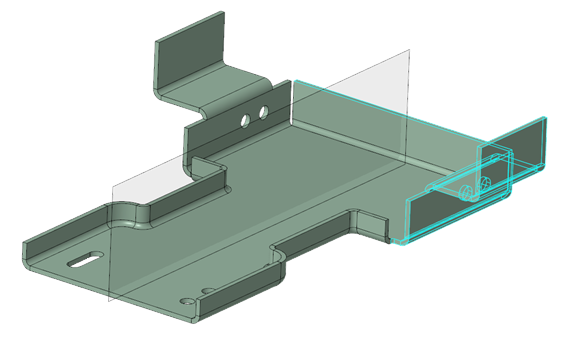

mirrored geometry
Benefits
Increased efficiency and higher quality designs due to a reduced likelihood of design inconsistencies.
Additional Information
Tips:
None.
Limitations:
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
default_dep_copy_option
