Introducing New Modelcheck Checks
Creo+
User Interface Location: These checks can be enabled in Modelcheck and configured to be reported as errors or warnings.
Videos
Description
Modelcheck now includes new checks for drawings and modeling to improve validation of dimensions and layer usage.
This enhancement introduces the following new checks :
• Drawing checks

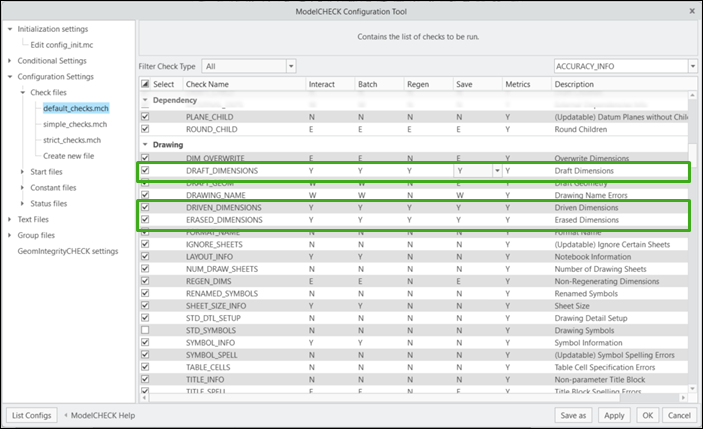

◦ DRIVEN_DIMENSIONS—Reports driven dimensions in drawing.
◦ DRAFT_DIMENSIONS—Reports draft dimensions in drawing.
◦ ERASED_DIMENSIONS—Reports erased dimensions in drawing.

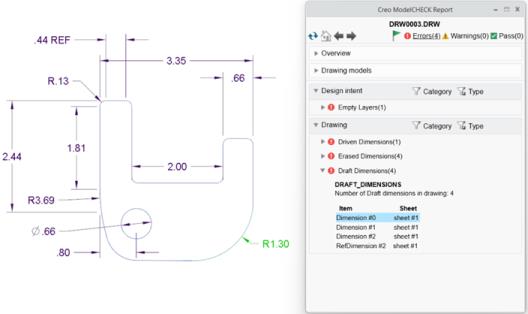

Each new drawing check highlights the corresponding dimensions in the drawing.
• Modeling Check

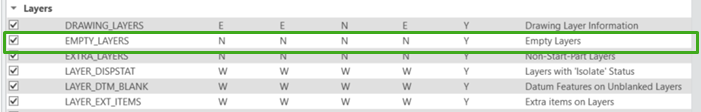

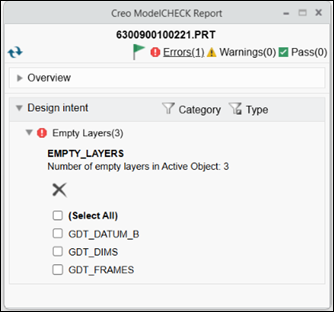

◦ EMPTY_LAYERS—Lists layers that are empty and do not have any layer rules. You can also delete empty layers from the Modelcheck report.
Benefits
• The drawing checks help ensure drawing data is accurate and driven from the model. This helps ensure the design accuracy is maintained and is properly depicted for downstream consumers.
• The layer enhancement makes it easier to create clean models by improving identification and removal of unused layers.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None |
