Modelcheck Support for Inseparable Assemblies
Creo+
User Interface Location: > >
Videos
Description

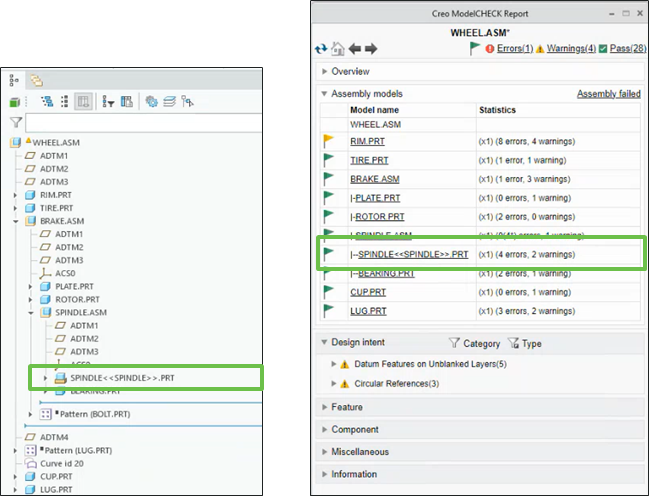

The Modelcheck infrastructure has been enabled to support inseparable assemblies in the Modelcheck report.
This enhancement introduces the following new checks :
• MC_MRG_EMBED_COMP_ERR config_init_option—Integrates embedded component error counts into the parent assembly parameter for seamless error management. This check is turned off by default.
• MC_MRG_COMP_ERR_IN_TOP_ASM—Merges component error counts into the top assembly error parameter. This check is turned off by default.
• MC_RUN_ON_ASM_COMP—Runs Modelcheck in intersected components. This check is turned off by default.
Benefits
These checks provide enhanced capability to review models with inseparable assemblies.
Additional Information
Tips: | Certain checks are turned Off by default and must be configured to Y to enable their functionality. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None |
