Semantic Query Definition for Tables
Creo+
User Interface Location:
1. Select the table or a table cell.

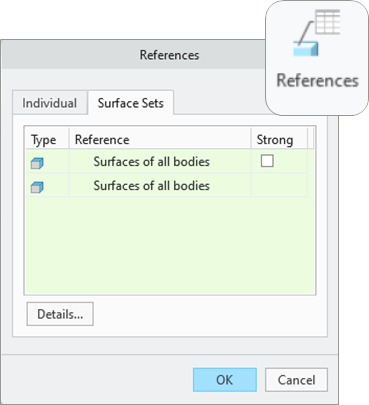

2. On the Table tab, click References.
or
1. Select the table or a table cell.
2. Click

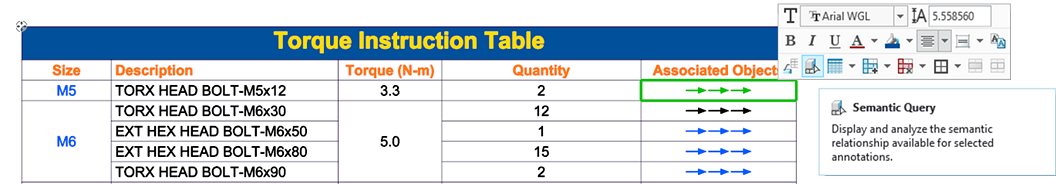

Semantic Query in the shortcut menu.
Semantic Query in the shortcut menu.
Videos
Description

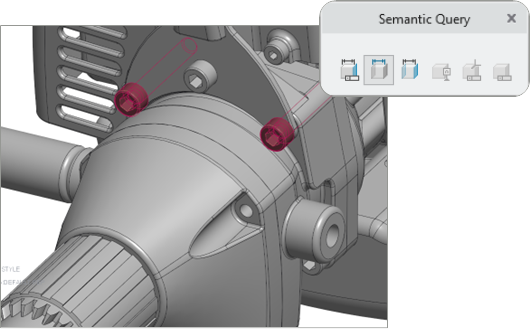

You can add semantic references to a table or to individual table cells. Using the semantic query tool, you can query the semantic associativity between tables and model surfaces. The corresponding model surfaces will be cross-highlighted in the graphics window.
Benefits
The semantic behavior and cross-highlighting of associated surfaces provide a better experience for users and enhance machine readability in MBD.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
