EZ Tolerance Analysis Enhancement: Support for Drafted Features of Size
Creo+
User Interface Location: N/A
Videos
Description
Drafted features such as drafted slabs, slots, holes, and shafts can now be defined as part of a tolerance stackup in EZ Tolerance Analysis.
Only drafted features whose draft angle is below the threshold are included in the stackup definition. The default threshold is 5 degrees; this value can be adjusted in the EZTAAppOptions.xml options file.

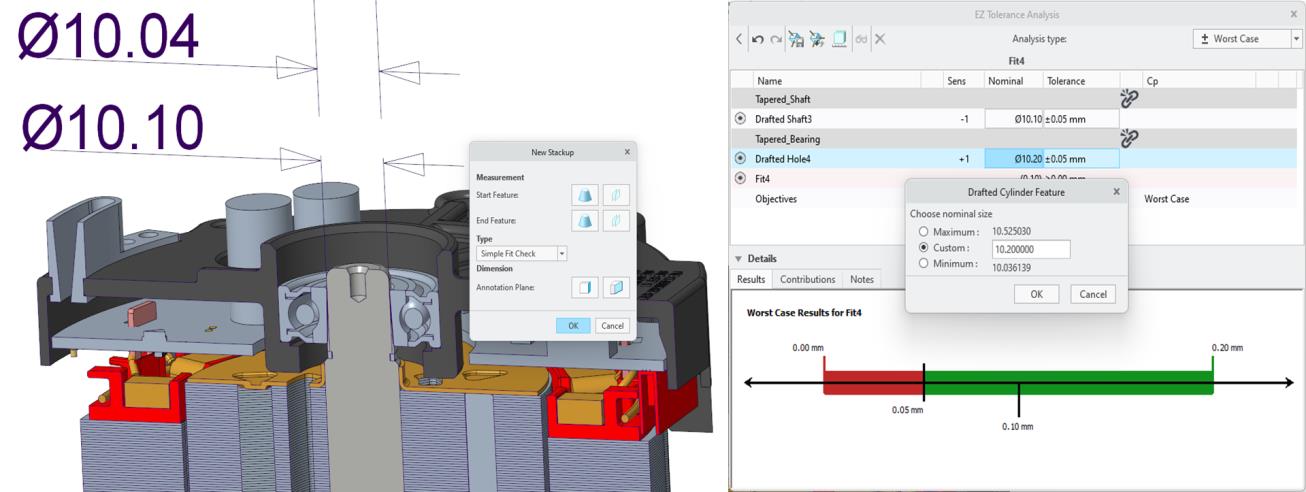

The next images show drafted features that are added during the stackup creation, illustrating how they appear in the stackup table.
Benefits
This enhancement has improved flexibility when defining 1D tolerance stackups.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
