New Configuration Option to Define the Default Annotation Plane for Annotations
Creo+
User Interface Location: N/A
Description
You can now use the new configuration option default_annotation_plane to specify the default annotation plane on which newly created annotations will be created.
The value for the option is a text field, enabling any user-defined annotation plane to be set as the default.
Benefits
Improved control over the default annotation plane for annotations, reducing repetitive actions, saving time, and minimizing mouse clicks during annotation creation.
Additional Information

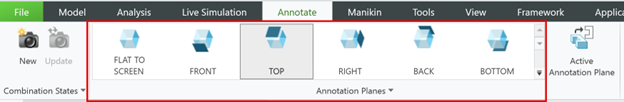

Tips: | The value specified for this configuration option is applied only as the initial annotation plane. If a different plane is selected from the Annotation Plane Gallery, that plane is used for all subsequent annotations. If the specified string does not match an existing annotation plane, the default behavior is applied. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | default_annotation_plane |
