Sketch-Based Features: Enhanced Reference Indications in Sketch Collectors
Creo+
User Interface Location: In all sketch-based features.
Description
In Creo 13, the Sketch collectors inside the feature user interface are enhanced to better reflect the status of the sketch references.
The added indication with a red or yellow dot allows you to immediately see failed sketches, or the reference status in general, in the following scenarios:
• For an external sketch, the sketch feature status is indicated.
• For an internal sketch, the state of sketch setup references (plane and orientation) is indicated.

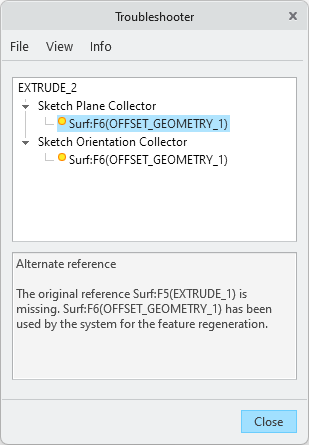

Additionally, you can now invoke the detailed troubleshooter information from the sketch collector using the What’s wrong command.
Prior to this enhancement, the actual status of the sketch reference was not indicated in the sketch collector.
Benefits
The enhancement provides increased usability through better status indications in the user interface.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
