Handling Missing Material Assignments
Creo+
User Interface Location:
When creating a ply book for a composite feature that contains plies with missing materials, you have the following visual indicators:
• Drawing views with issues are indicated with
in the Drawing Tree.
in the Drawing Tree.• When you redefine the failing ply view or flat ply view, the affected ply is indicated with
next to the Active Ply box in the Drawing View dialog box. When you move the mouse pointer over , the tooltip indicates that the selected ply has no assigned material.
next to the Active Ply box in the Drawing View dialog box. When you move the mouse pointer over , the tooltip indicates that the selected ply has no assigned material.• Ply views and flat ply views do not display the plies and cores where the original assigned materials are removed or no longer available.
Description
In a ply book, ply views and flat ply views do not display the plies and cores where the original assigned materials are removed or no longer available.
The views with issues are indicated with in the Drawing Tree.

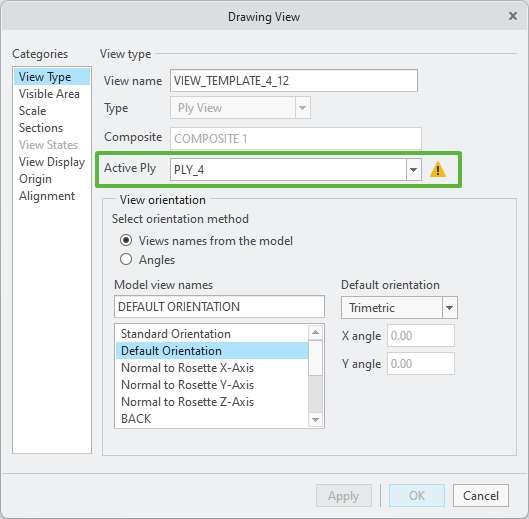

in the Drawing Tree.Additionally, when you redefine a failing ply view or flat ply view, the ply or core with the issue is indicated with next to the Active Ply box in the Drawing View dialog box
next to the Active Ply box in the Drawing View dialog box
Benefits
This enhancement improves productivity by providing better support and clearer visibility of ply views and flat ply views when plies or cores have missing materials.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
