Handling Missing Material Assignments
Creo+
User Interface Location:
In the Composite environment:
• Click

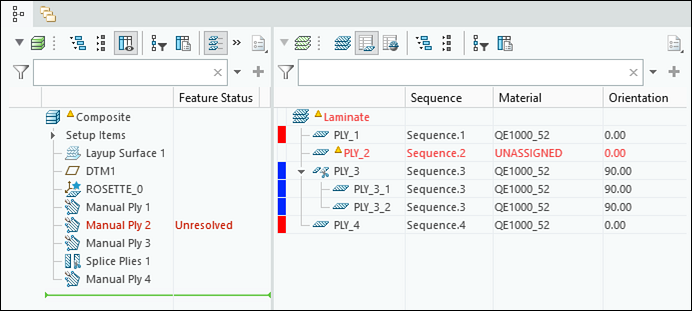

Laminate Manager on the Laminate Tree. The label UNASSIGNED appears in the Material column when the material of the laminate object is missing or removed.
Laminate Manager on the Laminate Tree. The label UNASSIGNED appears in the Material column when the material of the laminate object is missing or removed.• Use the
Tree Columns action on the Composite Tree to display the Feature Status column. The label Unresolved appears in the Feature Status column when the laminate object created with the feature has a missing or removed material.
Tree Columns action on the Composite Tree to display the Feature Status column. The label Unresolved appears in the Feature Status column when the laminate object created with the feature has a missing or removed material.Description
In the Composite environment, you now have a standardized approach for managing plies and cores with unavailable or removed materials.
• The laminate objects with unavailable or removed materials are labelled UNASSIGNED.
• The associated features of the laminate objects are labelled Unresolved.

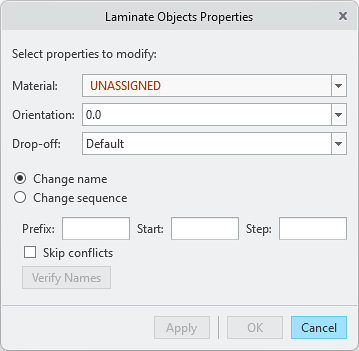

To assign a new material, you can use the Laminate Manager, redefine the feature that created the laminate object, or use the Laminate Objects Properties dialog box.
Benefits
This enhancement improves productivity by:
• Providing standardized labelling for plies and cores with missing materials.
• Eliminating the need for manual tracking or troubleshooting of missing material assignments, enabling better support and visibility.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
