Improving Tessellation for Creo Flow Analysis
Creo+
User Interface Location: Click >
Flow Analysis >
Generate Mesh.
Flow Analysis > Generate Mesh.Videos
Description
Creo Flow Analysis improves tessellation performance by processing only bodies that participate in a simulation. The system no longer tessellates all components in an assembly.
The system also enhances tessellation options to improve accuracy and robustness:

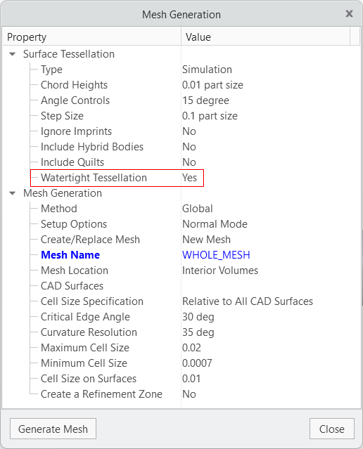

• Exposes watertight tessellation in the user interface.
• Uses watertight tessellation as the default for accurate, node-to-node connectivity.
• Provides non-watertight tessellation for complex models that require greater robustness.
Benefits
This enhancement has the following benefits:
• Reduces processing time by tessellating only relevant bodies.
• Improves meshing reliability for complex assemblies.
• Reduces mesh failures by supporting robust tessellation options.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
