Extending Creo Flow Analysis Capabilities
Creo+
User Interface Location: Click >
Flow Analysis.
Flow Analysis.Videos
Description

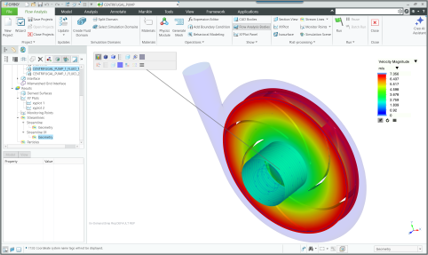

Creo Flow Analysis adds new capabilities that improve simulation setup, result evaluation, and reporting. These enhancements support better analysis of complex models and simulation results.
New and enhanced capabilities include:
• Generating simulation reports in Microsoft PowerPoint format.
• Supporting Study Check to identify missing simulation requirements.
• Distributing monitor points along surfaces or edges.
• Defining vector direction to assist with component setup.
• Enhancing XY plots with moving average and Fast Fourier Transform options.
• Automatically closing leakage paths using Leak Closure (SEALS).
Benefits
• Standardizes simulation reporting formats.
• Provides additional results to support design decisions.
• Reduces setup time by identifying and resolving leakage paths in complex geometry.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
