Improved Selection Visibility
Creo+
User Interface Location: N/A
Videos
Description
Previously, when you selected segments, wires, and location points, it affected only their color, making it difficult to identify the items selected in the graphics window, especially when cables had different spool colors.
The new visibility improvements include:

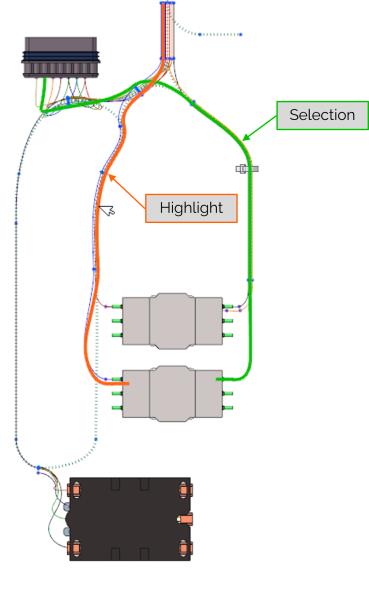

• Selection and prehighlight visibility in the graphics window for all cabling entities has been improved.
• Segments, wires, cables, and bundles have a bigger width when selected or highlighted.
• Location points scale up when selected or highlighted.
• Cosmetic features are more visible.
Benefits
This enhancement makes it easier to identify the selected cabling items in the graphics window.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
