Preloads on Solid Bolt Geometry in Creo Ansys Simulation
Creo+
User Interface Location: Select >
Videos
Description

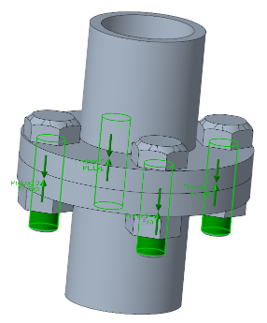

Creo Ansys Simulation now supports applying a bolt preload on a 3D modeled bolt.

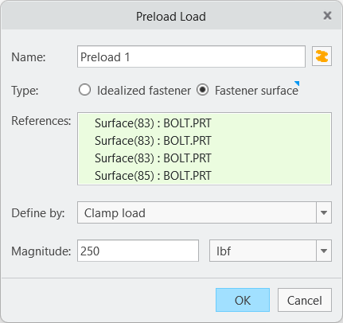

Previously preloads could only be applied to idealized fasteners. The preload options that are available for idealized bolts are now available for 3D modeled bolts as well. The following figure shows the preload dialog box:
Benefits
This enhancement provides the following benefits:
• Easy to use preload option
• Reuse 3D bolts in assembly for simulation
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
